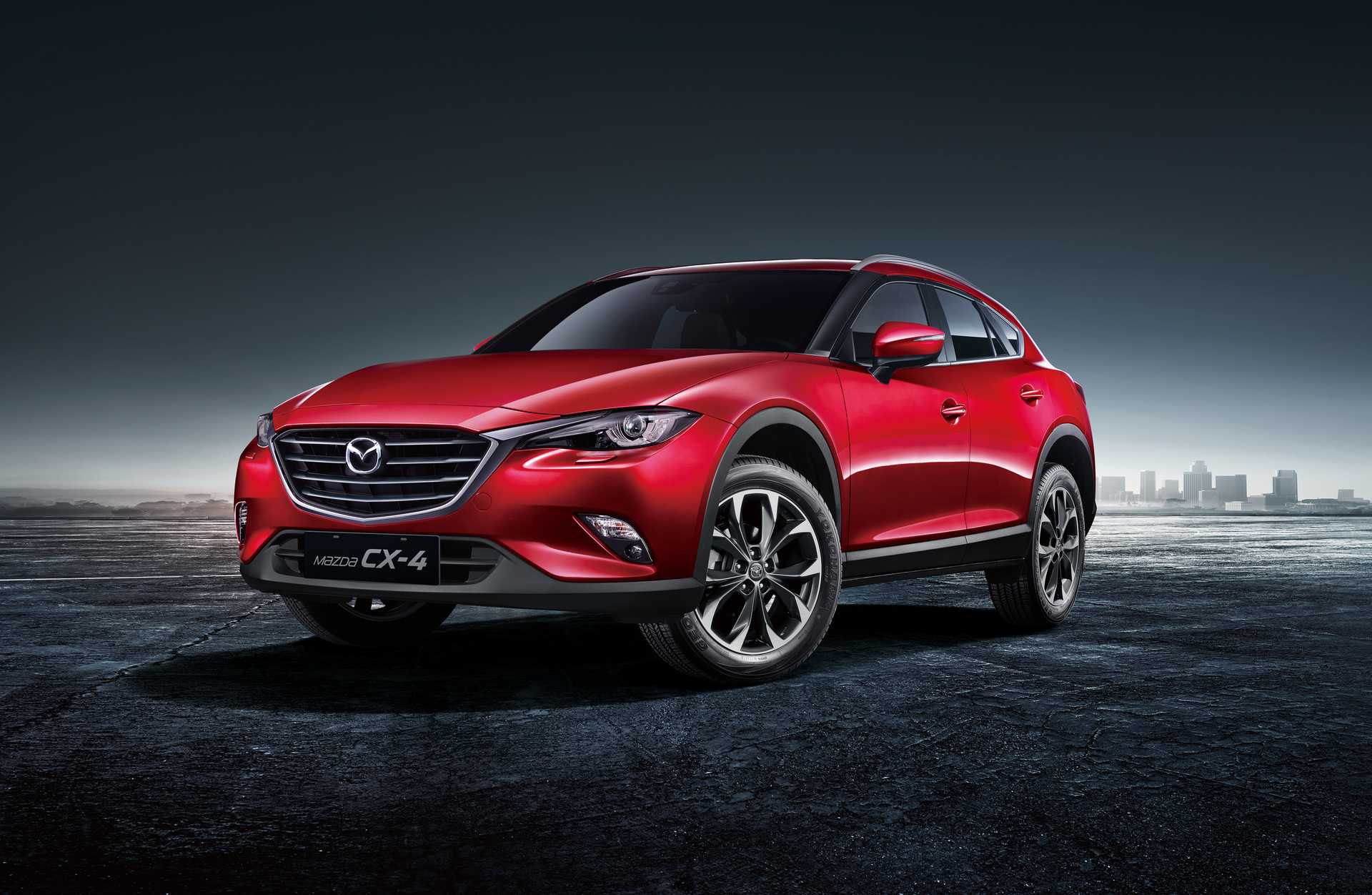

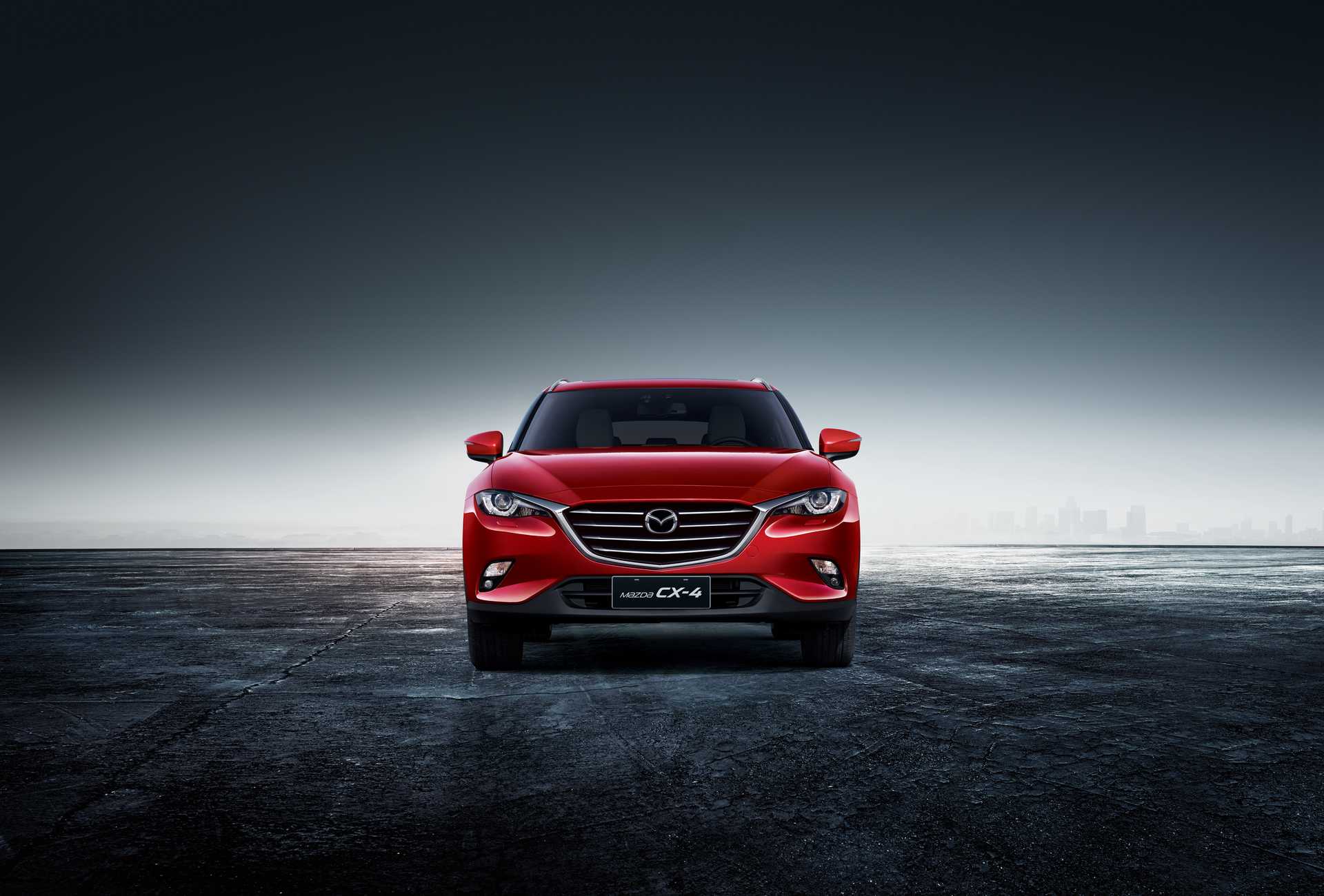

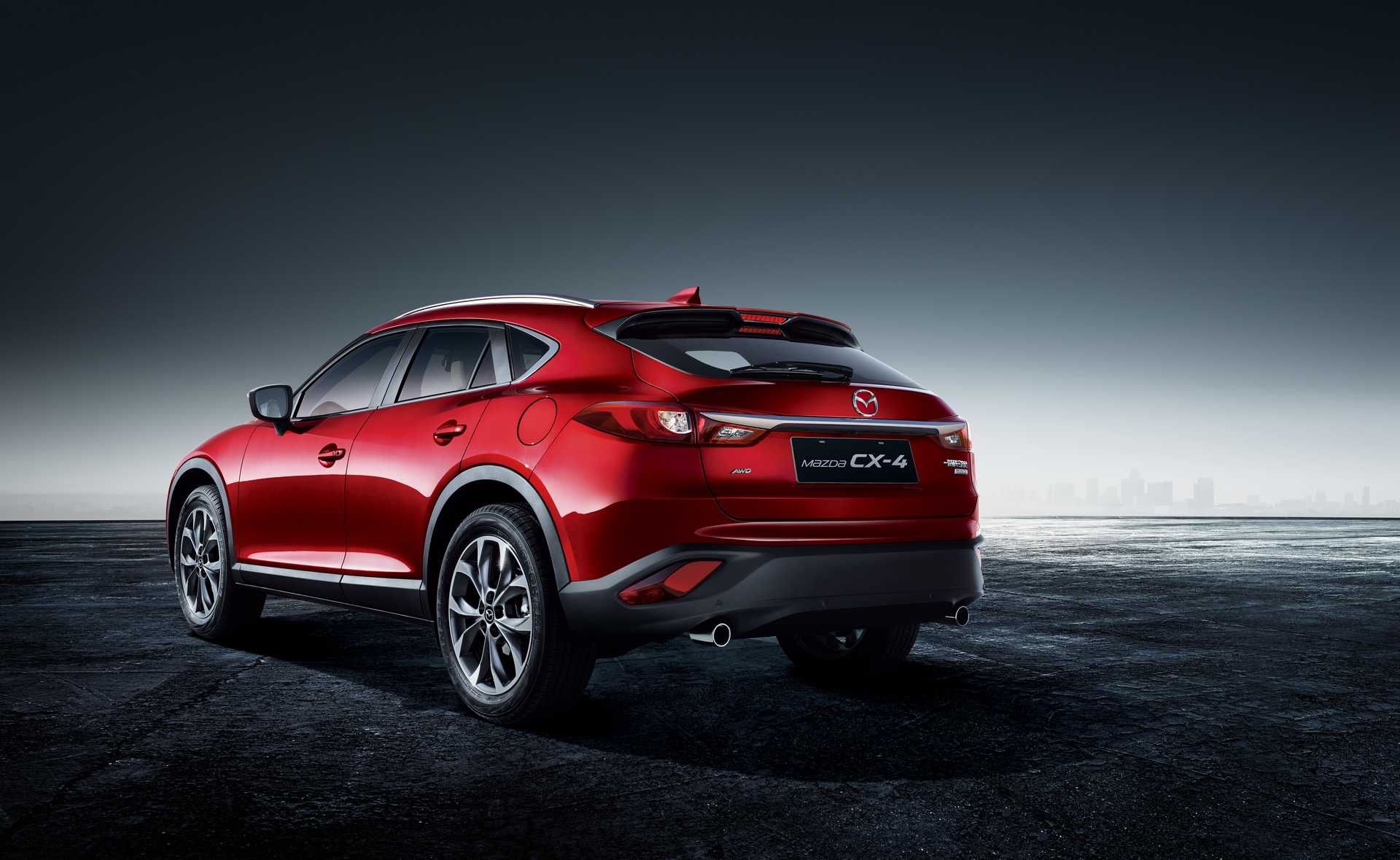

Mazda CX-4 2016–2019

1 generation

General information

Number of doors5

Car classC

CountryJapan

Steering wheel positionLeft

At a glance

Engine2488 cm3 Gasoline

Power189 hp

GearboxAutomatic

Origin

Japan

Trim

2.0 AT (158 PS)2.0 MT (158 PS)2.5 AT 4WD (192 PS)

Specifications

Engine

Stroke cycle100.0 mm

Compression ratio13

Max power (kW)141 kW

Engine power189 hp

Engine power192 PS

Capacity2488 cm3

Maximum torque252 N*m

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4000 RPM

Max power at RPM6100 RPM

Cylinder bore89.0 mm

Injection typedirect injection (direct)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Engine codePY-VPS

Engine modelPY-VPS

Bodywork

Max trunk capacity1228 l

Height1530 mm

Curb weight1545 kg

Front track width1584 mm

Back track width1586 mm

Width1840 mm

Clearance191 mm

Wheel size225/55 R19

Wheelbase2700 mm

Min trunk capacity400 l

Length4633 mm

Number of seater5

Disc size7.5x19 ET45, 7x17 ET45, 7x18 ET45, 7x19 ET45

Body typeCrossover

Pitch Circle DiameterDIA67.1 5x114.3 mm

Gearbox and handling

Number of gear6

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Max speed199 km/h

Fuel tank capacity51 l

Mixed driving fuel consumption per 100 km7.3 l

Fuel95

Acceleration (0-100 km/h)9.5 s

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
