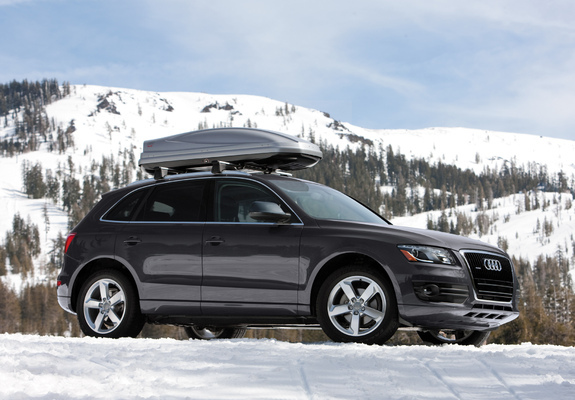

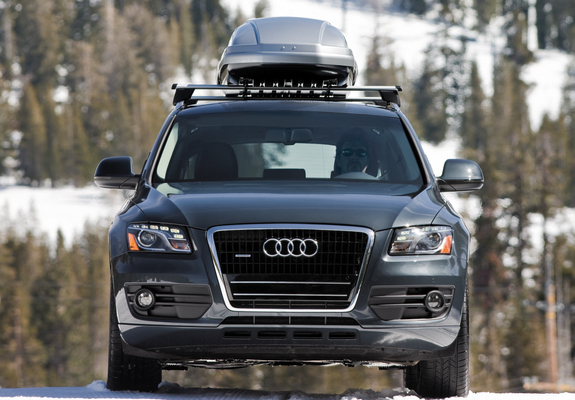

Audi Q5 2008–2012

1 generation (8R)
General information
Number of doors5
Car classD
CountryGermany
Steering wheel positionLeft
At a glance
Engine1984 cm3 Gasoline
Power208 hp
GearboxManual
OriginGermany
Trim
2.0 AMT (170 PS)2.0 AT (180 hp)2.0 AT (211 PS)2.0 TDI clean diesel S tronic quattro (170 hp)2.0 TDI MT (143 hp)2.0 TDI MT quattro (143 hp)2.0 TDI MT quattro (170 hp)2.0 TDI S tronic quattro (170 hp)2.0 TFSI Hybrid tiptronic quattro (245 hp)2.0 TFSI MT quattro (180 hp)2.0 TFSI MT quattro (211 PS)2.0 TFSI tiptronic quattro (211 hp)3.0 AMT (239 PS)3.0 TDI S tronic quattro (240 hp)3.2 AT (271 hp)3.2 FSI S tronic quattro (270 hp)

Specifications

Engine
Max power (kW)155 kW
Capacity1984 cm3
Engine power208 hp
Engine power211 PS
Maximum torque350 N*m
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4200 RPM
Max power at RPM4300 RPM
Cylinder bore82.5 mm
Stroke cycle92.8 mm
Compression ratio9.6
Engine codeCAEB
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, longitudinal
Engine typeGasoline
Cylinder layoutinline
Presence of intercoolerPresent
Boost typeTurbocharged
Bodywork
Max trunk capacity1560 l
Rear track1613 mm
Back track width1613 mm
Front track1617 mm
Front track width1617 mm
Height1653 mm
Curb weight1695 kg
Width1880 mm
Ground clearance200 mm
Clearance200 mm
Full weight2275 kg
Wheel size235/55 R19, 255/45 R20, 235/65 R17, 235/60 R18
Wheelbase2807 mm
Length4629 mm
Trailer load (with brakes)4730 kg
Number of seater5
Payload535 kg
Min trunk capacity540 l
Loading height693 mm
Body typeCrossover
Pitch Circle DiameterDIA66.6 5x112 mm
Gearbox and handling
Turning circle11.6 m
Number of gear6
Drive wheelsAll wheel drive (AWD)
Gearbox typeManual
Operating characteristics
City driving fuel consumption per 100 km10.8 l
CO2 emissions161 g/km
Max speed222 km/h
Highway driving fuel consumption per 100 km6.9 l
Fuel tank capacity75 l
Acceleration (0-100 km/h)7.6 s
Mixed driving fuel consumption per 100 km8.3 l
Fuel95
Emission standardsEuro 5
Cruising rangefrom 730 to 1 100 km
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc
