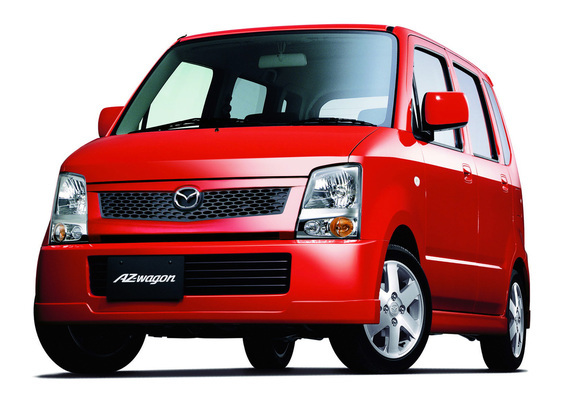

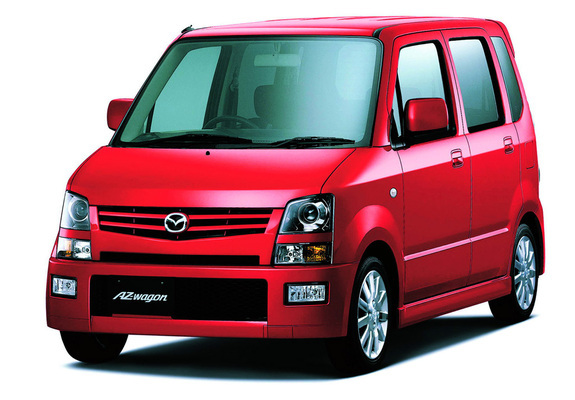

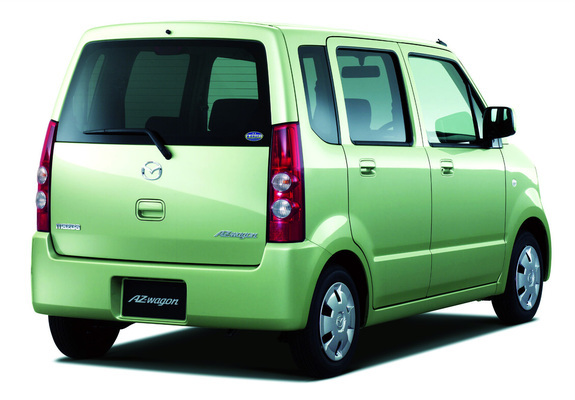

Mazda AZ-Wagon 2003–2005

3 generation

No photos yet0.7 T AT 4WD (60 hp)

At a glance

Engine658 cm3 Gasoline

Power60 hp

GearboxAutomatic

OriginN/A

Series

Custom Style hatchback 5-doors Hatchback Microvan

Trim

0.7 AT 4WD (54 hp)0.7 AT (54 hp)0.7 T AT 4WD (60 hp)0.7 T AT 4WD (64 hp)0.7 T AT (60 hp)0.7 T AT (64 hp)

Specifications

Engine

Number of cylinders3

Valves per cylinder4

Max power (kW)45 kW

Engine power60 hp

Stroke cycle60.4 mm

Engine power61 PS

Capacity658 cm3

Cylinder bore68 mm

Maximum torque83 N*m

Engine typeGasoline

Cylinder layoutInline

Injection typeMulti-point fuel injection

Presence of intercoolerPresent

Turnover of maximum torqueto 3 000 RPM

Max power at RPMto 6 000 RPM

Boost typeTurbo

Bodywork

Rear track1280 mm

Front track1285 mm

Width1475 mm

Height1645 mm

Wheelbase2360 mm

Length3395 mm

Number of seater4

Curb weight910 kg

Body typeHatchback

Gearbox and handling

Number of gear4

Turning circle8.8 m

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Fuel tank capacity30 l

Mixed driving fuel consumption per 100 km5.5 l

Fuel92

Suspension and brakes

Rear brakesdrum

Back suspensionHelical springs

Front suspensionIndependent, McPherson Struts, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
