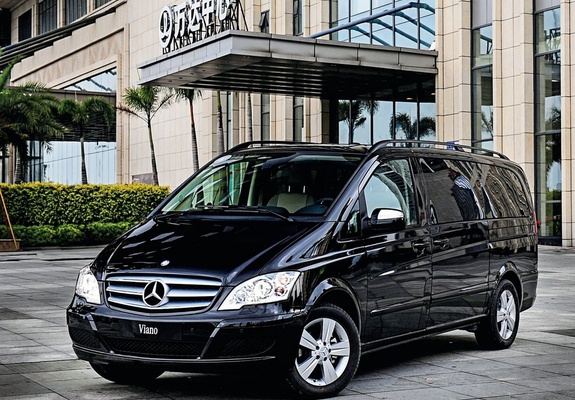

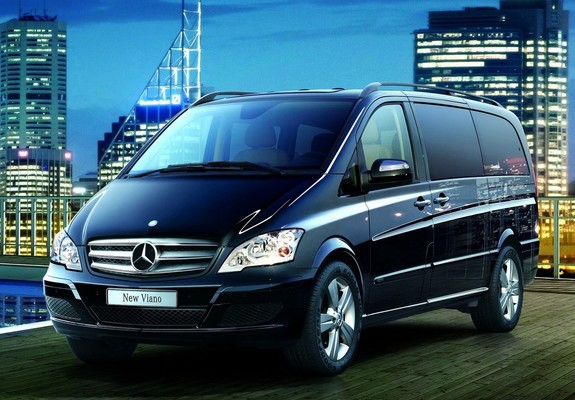

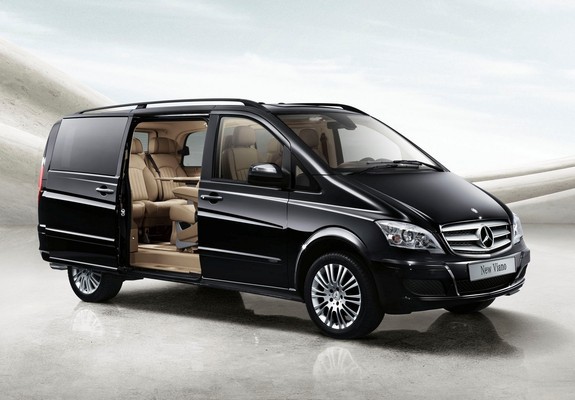

Mercedes-Benz Viano 2010–2014

1 generation (W639) [restyling]
No photos yet2.1 MT (136 PS)
General information
Number of doors4
CountryGermany
Steering wheel positionLeft
Car classM
At a glance
Engine2143 cm3 Diesel
Power134 hp
GearboxManual
OriginGermany
Series
FUN minivanMinivanMinivan Extralong
Trim
2.0 CDI MT compact (136 hp)2.0 CDi MT extended (136 hp)2.1 MT (136 PS)2.1 MT (163 PS)2.2 CDI MT compact (163 hp)2.2 CDI MT extended (163 hp)3.0 CDI AT compact (224 hp)3.0 CDI AT extended (224 PS)3.5 AT compact (258 hp)3.5 AT extended (258 PS)

Specifications

Engine
Max power (kW)100 kW
Engine power134 hp
Engine power136 PS
Compression ratio16.2
Capacity2143 cm3
Turnover of maximum torque2600 RPM
Maximum torque310 N*m
Max power at RPM3800 RPM
Number of cylinders4
Valves per cylinder4
Cylinder bore83.0 mm
Stroke cycle99.0 mm
Injection typeCommon rail (diesel)
Engine typeDiesel
Timing beltDOHC
Engine placementFront, longitudinal
Cylinder layoutinline
Engine codeOM651.925
Boost typeTurbocharged
Bodywork
Front track width1630 mm
Back track width1630 mm
Clearance170 mm
Height1875 mm
Width1901 mm
Wheel size195/65 R16, 205/65 R16, 225/55 R17, 225/60 R16, 245/45 R18
Curb weight2080 kg
Full weight3050 kg
Wheelbase3430 mm
Length5238 mm
Number of seater6, 7, 8
Pitch Circle DiameterDIA66.5 5x112 mm
Body typeMinivan
Gearbox and handling
Number of gear6
Gearbox typeManual
Drive wheelsRear wheel drive
Operating characteristics
Acceleration (0-100 km/h)14.1 s
Max speed174 km/h
CO2 emissions190 g/km
Highway driving fuel consumption per 100 km6.4 l
Mixed driving fuel consumption per 100 km7.2 l
Fuel tank capacity75 l
City driving fuel consumption per 100 km8.8 l
Fueldiesel
Emission standardsEuro 5
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc
