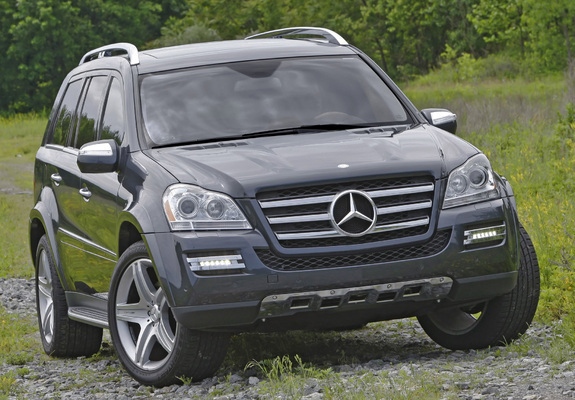

Mercedes-Benz GL-Class 2009–2012

1 generation (X164) [restyling]
At a glance
Engine2987 cm3 Diesel
Power224 hp
GearboxAutomatic
OriginN/A
Trim
3.0 AT 4WD (211 hp)3.0 AT 4WD (224 hp)3.0 AT AWD (224 PS)4.0 AT 4WD (306 hp)4.7 AT 4WD (340 PS)5.5 AT 4WD (382 hp)5.5 AT 4WD (388 hp)GL 350 CDI BlueEFFICIENCY 7G-Tronic 4MATIC (224 hp)GL 350 CDI BlueEFFICIENCY 7G-Tronic 4MATIC (265 hp)GL 350 CDI BlueEFFICIENCY 7G-Tronic 4MATIC 7 places (224 hp)GL 350 CDI BlueEFFICIENCY 7G-Tronic 4MATIC 7 places (265 hp)GL 350 CDI BlueTEC 7G-Tronic 4MATIC (211 hp)GL 350 CDI BlueTEC 7G-Tronic 4MATIC 7 places (211 hp)GL 450 7G-Tronic 4MATIC (340 hp)GL 450 7G-Tronic 4MATIC 7 places (340 hp)GL 450 CDI 7G-Tronic 4MATIC (306 hp)GL 450 CDI 7G-Tronic 4MATIC 7 places (306 hp)GL 500 7G-Tronic 4MATIC (388 hp)GL 500 7G-Tronic 4MATIC 7 places (388 hp)

Specifications

Engine
Max power (kW)167 kW
Engine power224 hp
Engine power227 PS
Capacity2987 cm3
Valves per cylinder4
Maximum torque510 N*m
Number of cylinders6
Cylinder bore83 mm
Stroke cycle92 mm
Injection typeCommon Rail
Engine typeDiesel
Turnover of maximum torquefrom 1 600 to 2 800 RPM
Max power at RPMto 3 800 RPM
Boost typeTurbo
Cylinder layoutV-type
Bodywork
Front track1651 mm
Rear track1654 mm
Height1840 mm
Width1920 mm
Max trunk capacity2300 l
Curb weight2450 kg
Wheelbase3075 mm
Full weight3150 kg
Number of seater5
Length5099 mm
Min trunk capacity680 l
Payload700 kg
Loading height802 mm
Body typeCrossover
Gearbox and handling
Turning circle12.1 m
Number of gear7
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Fuel tank capacity100 l
City driving fuel consumption per 100 km11.9 l
Max speed210 km/h
Highway driving fuel consumption per 100 km7.7 l
Mixed driving fuel consumption per 100 km9.3 l
Acceleration (0-100 km/h)9.5 s
Fueldiesel
Emission standardsEURO IV
Cruising rangefrom 840 to 1 300 km
Suspension and brakes
Front suspensionIndependent, Pneumatic, Double wishbone, Dampers
Back suspensionIndependent, Pneumatic, Multi wishbone, Dampers
Front brakesventilated disc
Rear brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
