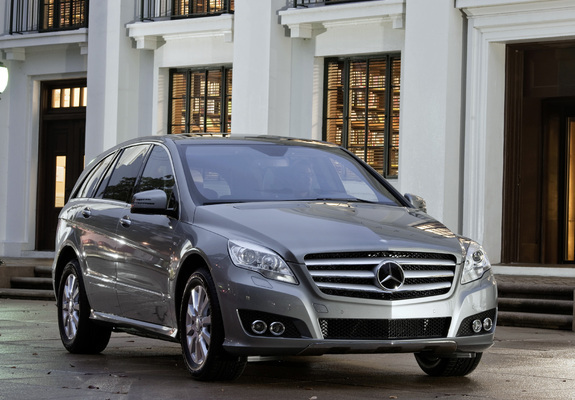

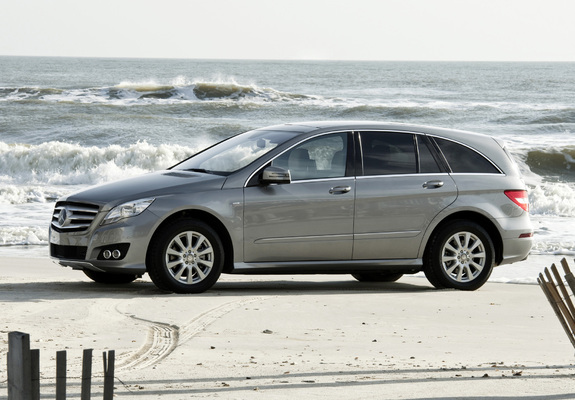

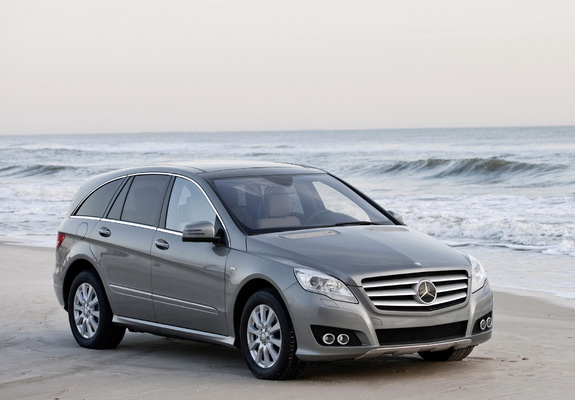

Mercedes-Benz R-Class 2010–2017

1 generation [2th restyling] (W251 / V251)
General information
Number of doors5
CountryGermany
Steering wheel positionLeft
Car classM
At a glance
Engine5461 cm3 Gasoline
Power388 hp
GearboxAutomatic
OriginGermany
Series
MinivanMinivan Long
Trim
3.0 AT (190 PS)3.0 AT (231 PS)3.0 AT 4WD (211 PS)3.0 AT 4WD (224 PS)3.0 AT 4WD (231 PS)3.0 AT 4WD (265 PS)3.0 AT AWD (224 PS)3.5 AT 4WD (272 PS)3.5 AT 4WD (306 PS)3.5 AT AWD (272 PS)3.5 AT RWD (272 PS)5.5 AT 4WD (388 hp)

Specifications

Engine
Compression ratio10.7
Max power (kW)285 kW
Engine power387 PS
Engine power388 hp
Valves per cylinder4
Turnover of maximum torque4800 RPM
Maximum torque530 N*m
Capacity5461 cm3
Max power at RPM6000 RPM
Number of cylinders8
Stroke cycle90.5 mm
Cylinder bore98 mm
Injection typedirect injection (direct)
Timing beltDOHC
Engine placementFront, longitudinal
Engine typeGasoline
Engine modelm273.963
Engine codeM273.963
Boost typenone
Cylinder layoutV-type
Bodywork
Min trunk capacity1118 l
Back track width1651 mm
Front track width1661 mm
Height1674 mm
Clearance170 mm
Width2183 mm
Curb weight2265 kg
Wheel size255/50 R19
Full weight2920 kg
Wheelbase3215 mm
Length5157 mm
Number of seater5, 7
Disc size8.5x19 ET64 9.5 19 64, 8x19 ET67, 9x20 ET60
Pitch Circle DiameterDIA66.6 5x112 mm
Body typeMinivan
Gearbox and handling
Number of gear7
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Highway driving fuel consumption per 100 km10.0 l
Mixed driving fuel consumption per 100 km13.2 l
City driving fuel consumption per 100 km18.6 l
CO2 emissions235 g/km
Max speed250 km/h
Acceleration (0-100 km/h)6.3 s
Fuel tank capacity80 l
Fuel98
Emission standardsEuro 5
Suspension and brakes
Rear brakesDisc
Back suspensionIndependent, pneumatic element
Front suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
