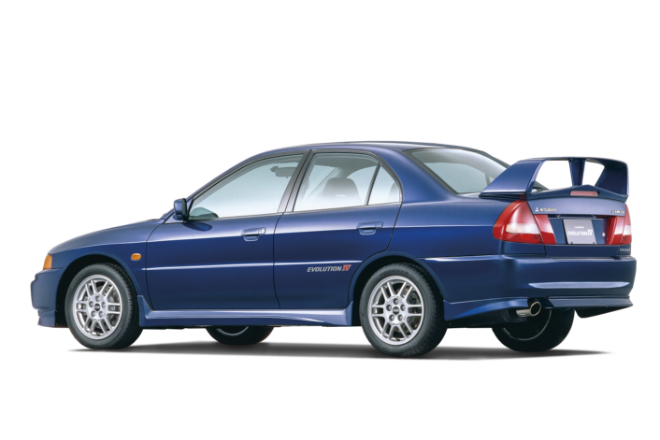

Mitsubishi Lancer Evolution 1996–1998

4th Generation (CN9A)

General information

Number of doors4

Car classC

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine1997 cm3 Gasoline

Power280 hp

GearboxManual

Origin

Japan

Trim

2.0 MT AWD (280 PS)2.0 Twin-Scroll Turbo MT (280 hp)

Specifications

Engine

Compression ratio10.4

Capacity1997 cm3

Max power (kW)209 kW

Engine power280 hp

Engine power284 PS

Turnover of maximum torque3000 RPM

Maximum torque353 N*m

Number of cylinders4

Valves per cylinder4

Engine model4g63

Engine code4G63T

Cylinder bore85 mm

Stroke cycle88 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Presence of intercoolerPresent

Max power at RPMto 6 500 RPM

Boost typeTurbocharged

Bodywork

Curb weight1350 kg

Height1415 mm

Front track1470 mm

Rear track1470 mm

Front track width1470 mm

Back track width1470 mm

Full weight1535 kg

Ground clearance155 mm

Clearance155 mm

Width1690 mm

Wheel size205/60 R15

Wheelbase2510 mm

Length4330 mm

Number of seater5

Front/rear axle load875/660 kg

Pitch Circle DiameterDIA67.1 5x114.3 mm

Body typeSedan

Gearbox and handling

Turning circle11 m

Number of gear5

Drive wheelsAll wheel drive (AWD)

Gearbox typeManual

Operating characteristics

Mixed driving fuel consumption per 100 km13.2 l

City driving fuel consumption per 100 km16.3 l

Max speed240 km/h

Fuel tank capacity50 l

Acceleration (0-100 km/h)5.4 s

Fuel95

Highway driving fuel consumption per 100 km9.5 l

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
