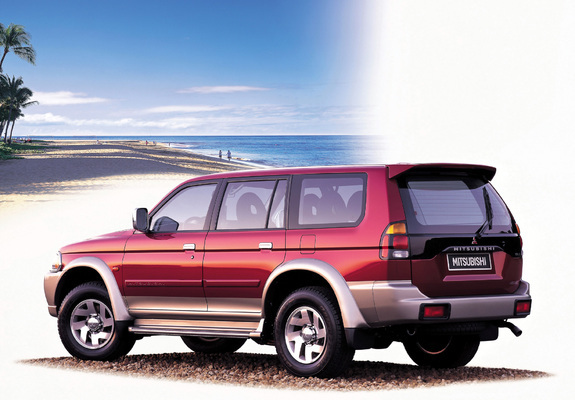

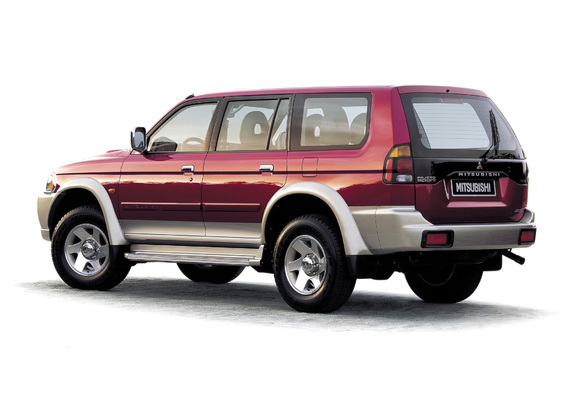

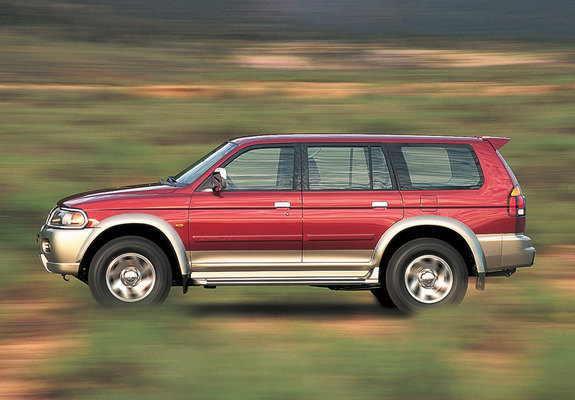

Mitsubishi Pajero Sport 1998–2004

1 generation
General information
Number of doors5
Car classJ
CountryJapan
Steering wheel positionLeft/Right
At a glance
Engine2477 cm3 Diesel
Power115 hp
GearboxManual
OriginJapan
Trim
2.5d MT (133 PS) 4WD2.5 TD MT (115 hp)2.5 TD MT (133 hp)2.5 TD MT (99 PS)2.8 AT (125 PS)3.0 AT (170 PS)3.0 AT (177 PS)3.0 MT (170 PS)3.0 MT (177 PS)

Specifications

Engine
Engine power115 hp
Engine power116 PS
Turnover of maximum torque2000 RPM
Compression ratio21
Maximum torque240 N*m
Capacity2477 cm3
Number of cylinders4
Valves per cylinder4
Max power at RPM4000 RPM
Engine code4D56Di-D
Max power (kW)85 kW
Cylinder bore91.1 mm
Stroke cycle95 mm
Injection typeCommon rail (diesel)
Engine typeDiesel
Engine placementFront, longitudinal
Cylinder layoutinline
Presence of intercoolerPresent
Timing beltSOHC
Boost typeTurbocharged
Bodywork
Front track1465 mm
Front track width1465 mm
Rear track1480 mm
Back track width1480 mm
Max trunk capacity1720 l
Height1735 mm
Width1775 mm
Curb weight1920 kg
Ground clearance215 mm
Clearance215 mm
Wheel size235/75 R15, 245/70 R16
Full weight2510 kg
Wheelbase2725 mm
Length4610 mm
Number of seater5
Min trunk capacity500 l
Payload590 kg
Body typeCrossover
Pitch Circle DiameterDIA108 6x139.7 mm
Gearbox and handling
Turning circle11.2 m
Number of gear5
Drive wheelsAll wheel drive (AWD)
Gearbox typeManual
Operating characteristics
Mixed driving fuel consumption per 100 km10.5 l
City driving fuel consumption per 100 km13.1 l
Max speed150 km/h
Acceleration (0-100 km/h)18.5 s
Fuel tank capacity74 l
Highway driving fuel consumption per 100 km9.0 l
Fueldiesel
Emission standardsEURO III
Cruising rangefrom 760 to 1 010 km
Suspension and brakes
Back suspensionDependent, spring
Rear brakesDisc
Front suspensionIndependent, Torsion
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
