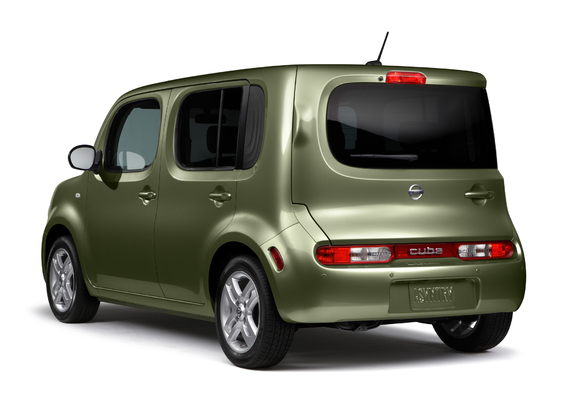

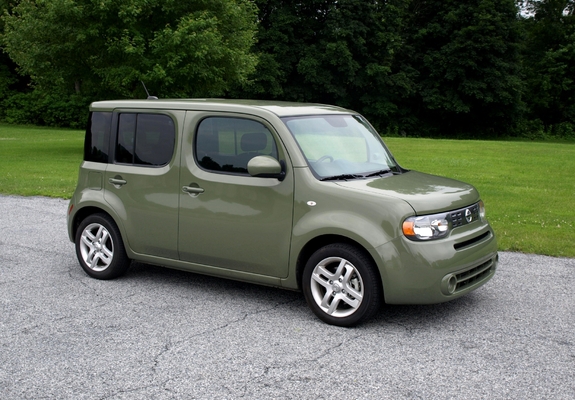

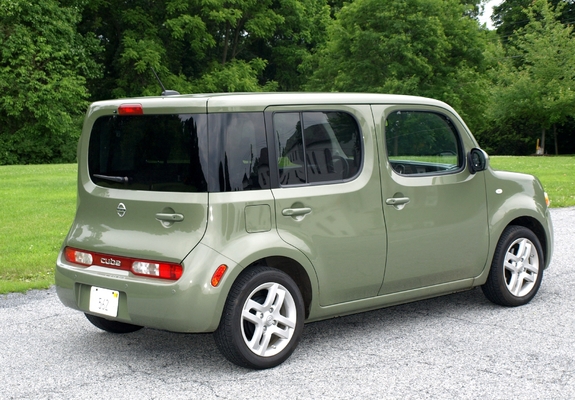

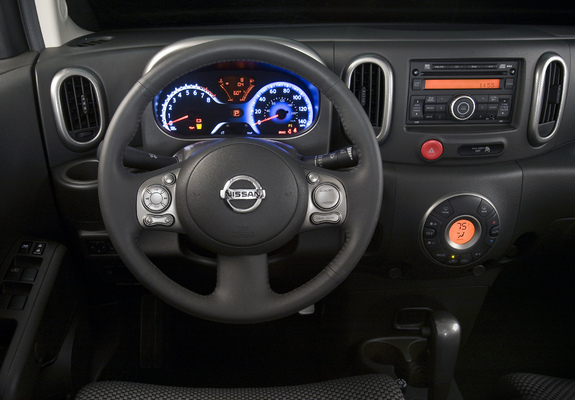

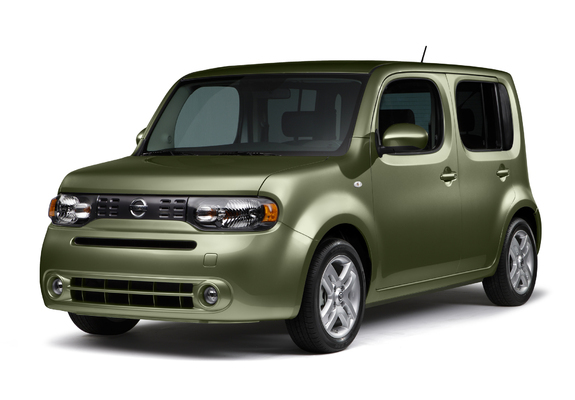

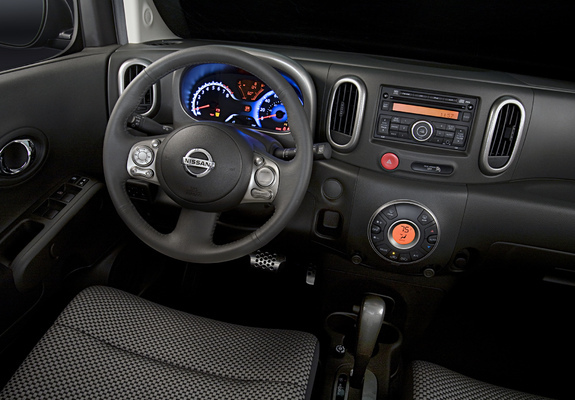

Nissan Cube 2008–2020

3 generation (Z12)

General information

Number of doors5

CountryJapan

Steering wheel positionLeft/Right

Car classM

At a glance

Engine1498 cm3 Gasoline

Power107 hp

GearboxContinuously variable transmission (CVT)

Origin

Japan

Trim

1.5 CVT (109 PS)1.5 CVT (110 PS)1.5 CVT (111 PS)1.5 CVT 4WD (109 hp)1.5 MT (110 PS)1.6 CVT (110 PS)1.6 MT (110 PS)1.8 CVT (122 PS)1.8 MT (122 PS)

Specifications

Engine

Engine power107 hp

Engine power109 PS

Maximum torque148 N*m

Capacity1498 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM6000 RPM

Cylinder bore73.6 mm

Max power (kW)80 kW

Stroke cycle88 mm

Compression ratio9.9

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Engine modelhr15de

Engine codeHR15DE

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1170 kg

Front track width1475 mm

Front track1480 mm

Back track width1480 mm

Rear track1485 mm

Ground clearance160 mm

Clearance160 mm

Max trunk capacity1645 l

Height1670 mm

Width1695 mm

Wheel size175/65 R15

Wheelbase2530 mm

Min trunk capacity322 l

Length3980 mm

Number of seater5

Pitch Circle DiameterDIA60.1 4x100 mm

Body typeMinivan

Gearbox and handling

Drive wheelsAll wheel drive (AWD)

Gearbox typeContinuously variable transmission (CVT)

Operating characteristics

City driving fuel consumption per 100 km11.0 l

Acceleration (0-100 km/h)12.6 s

Max speed171 km/h

Fuel tank capacity52 l

Highway driving fuel consumption per 100 km7.4 l

Fuel92

Mixed driving fuel consumption per 100 km9.6 l

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionTorsion beam

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
