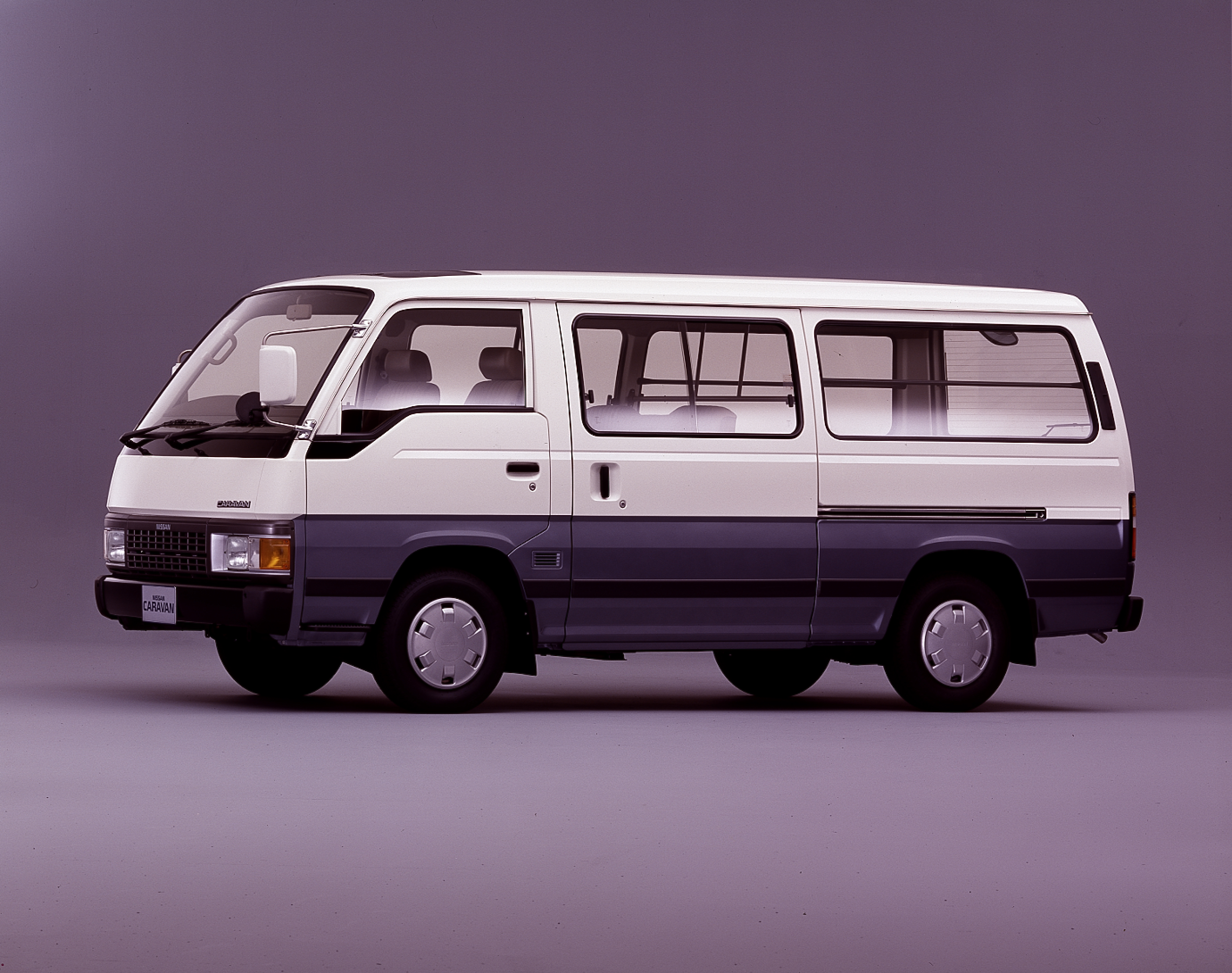

Nissan Homy 1990–1997

4 generation (E24) [restyling]

General information

Number of doors5

CountryJapan

Car classM

Steering wheel positionRight

At a glance

Engine1952 cm3 Gasoline

Power90 hp

GearboxAutomatic

Origin

Japan

Trim

2.0 AT (91 PS)2.0 MT (91 PS)2.7 AT (130 hp)2.7 AT 4WD (100 hp)2.7 AT 4WD (110 PS)2.7 AT 4WD (130 hp)2.7 AT 4WD (85 hp)2.7 AT (85 hp)2.7 MT 4WD (85 hp)3.0 AT (155 PS)

Specifications

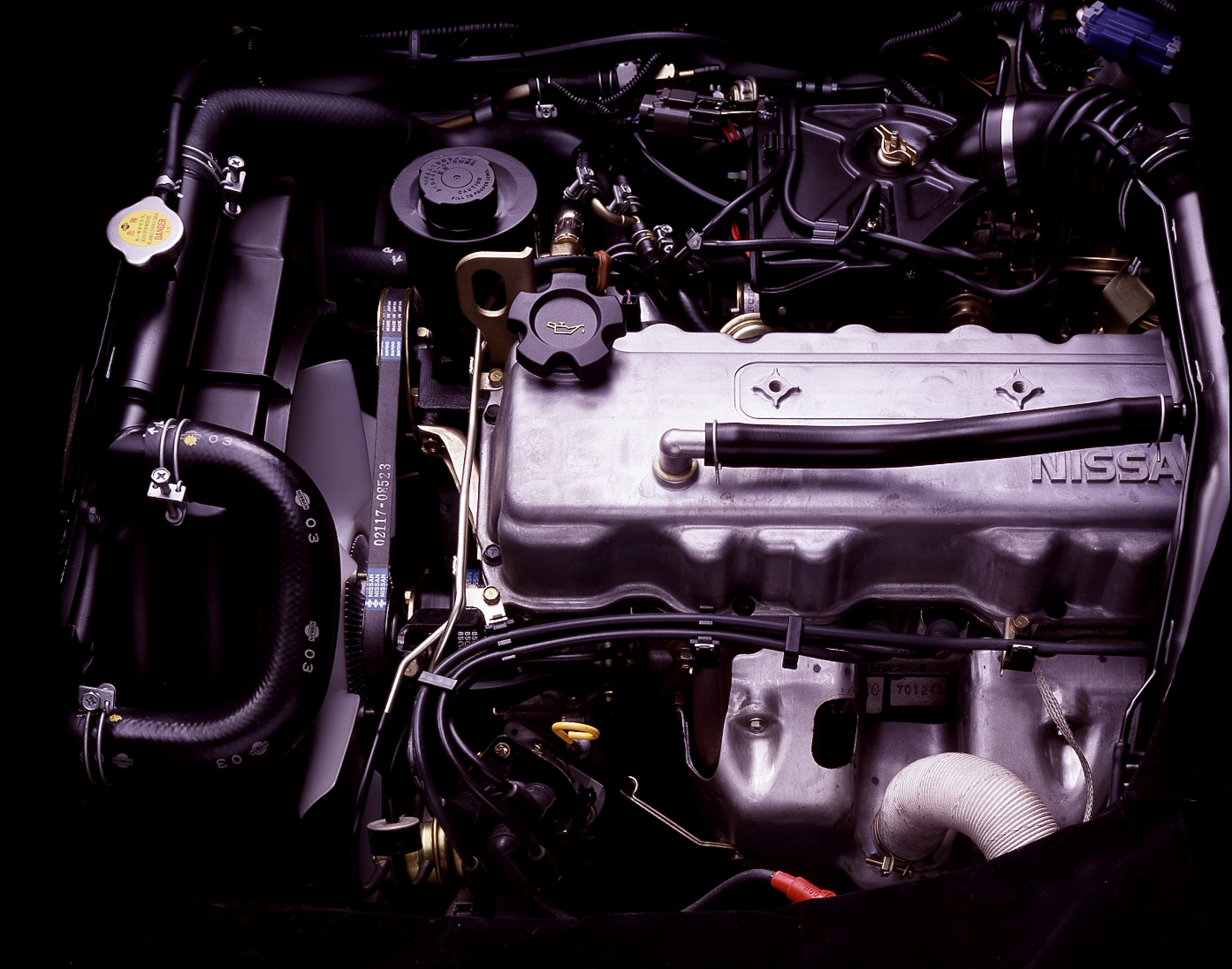

Engine

Maximum torque149 N*m

Capacity1952 cm3

Turnover of maximum torque3200 RPM

Number of cylinders4

Valves per cylinder4

Max power at RPM5200 RPM

Max power (kW)67 kW

Cylinder bore85 mm

Compression ratio8.5

Stroke cycle86 mm

Engine power90 hp

Engine power91 PS

Injection typecarburetor

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Engine codeZ20S

Bodywork

Height1360 mm

Back track width1405 mm

Front track width1455 mm

Curb weight1600 kg

Width1690 mm

Clearance185 mm

Wheelbase2645 mm

Length4690 mm

Number of seater9

Body typeMinivan

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Mixed driving fuel consumption per 100 km12.5 l

Fuel tank capacity65 l

Fuel92

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
