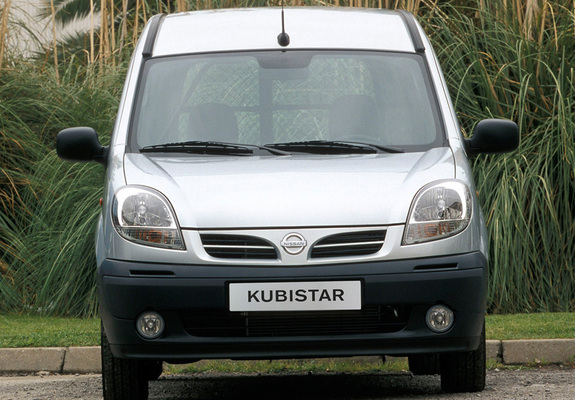

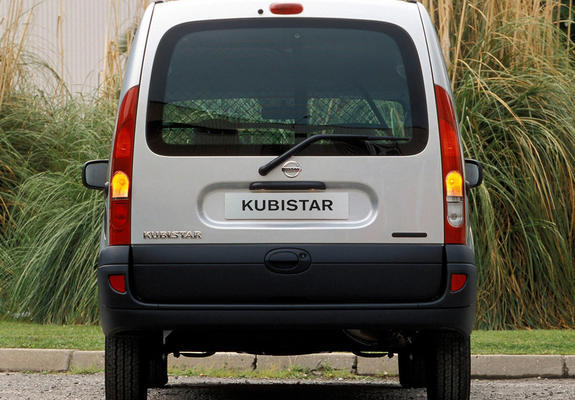

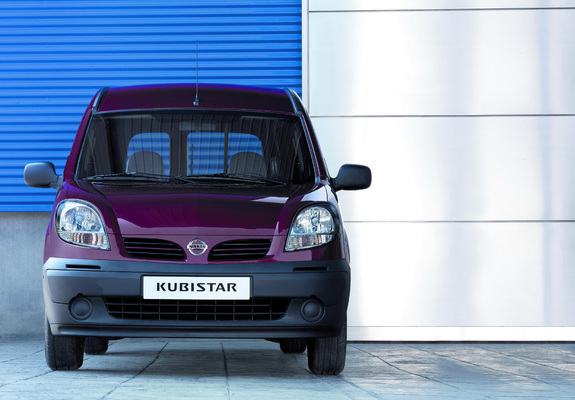

Nissan Kubistar 2003–2009

1 generation (X76)

General information

Number of doors4

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine1149 cm3 Gasoline

Power59 hp

GearboxManual

Origin

Japan

Trim

1.2 MT (60 PS)1.2 MT (75 PS)1.5 D MT (61 hp)1.5 MT (65 PS)1.5 MT (82 PS)1.5 TD MT (65 hp)1.5 TD MT (82 hp)1.6 MT (95 PS)

Specifications

Engine

Capacity1149 cm3

Valves per cylinder2

Turnover of maximum torque2500 RPM

Number of cylinders4

Max power (kW)44 kW

Max power at RPM5500 RPM

Engine power59 hp

Engine power60 PS

Stroke cycle69 mm

Cylinder bore76.8 mm

Maximum torque93 N*m

Engine codeD7F 764

Engine modelD7F 764

Injection typedirect injection (direct)

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1045 kg

Front track1400 mm

Front track width1400 mm

Rear track1410 mm

Back track width1410 mm

Wheel size165/70 R14

Width1670 mm

Full weight1680 kg

Ground clearance170 mm

Clearance170 mm

Height1830 mm

Number of seater2

Wheelbase2610 mm

Length4036 mm

Body typeVan

Gearbox and handling

Number of gear5

Drive wheelsFront wheel drive

Gearbox typeManual

Operating characteristics

Max speed140 km/h

Acceleration (0-100 km/h)17.2 s

Fuel tank capacity50 l

Highway driving fuel consumption per 100 km6.1 l

Mixed driving fuel consumption per 100 km7.5 l

City driving fuel consumption per 100 km8.3 l

Fuel92

Cruising rangefrom 600 to 820 km

Suspension and brakes

Back suspensionDependent, spring

Rear brakesdrum

Front suspensionIndependent, spring

Front brakesventilated disc
