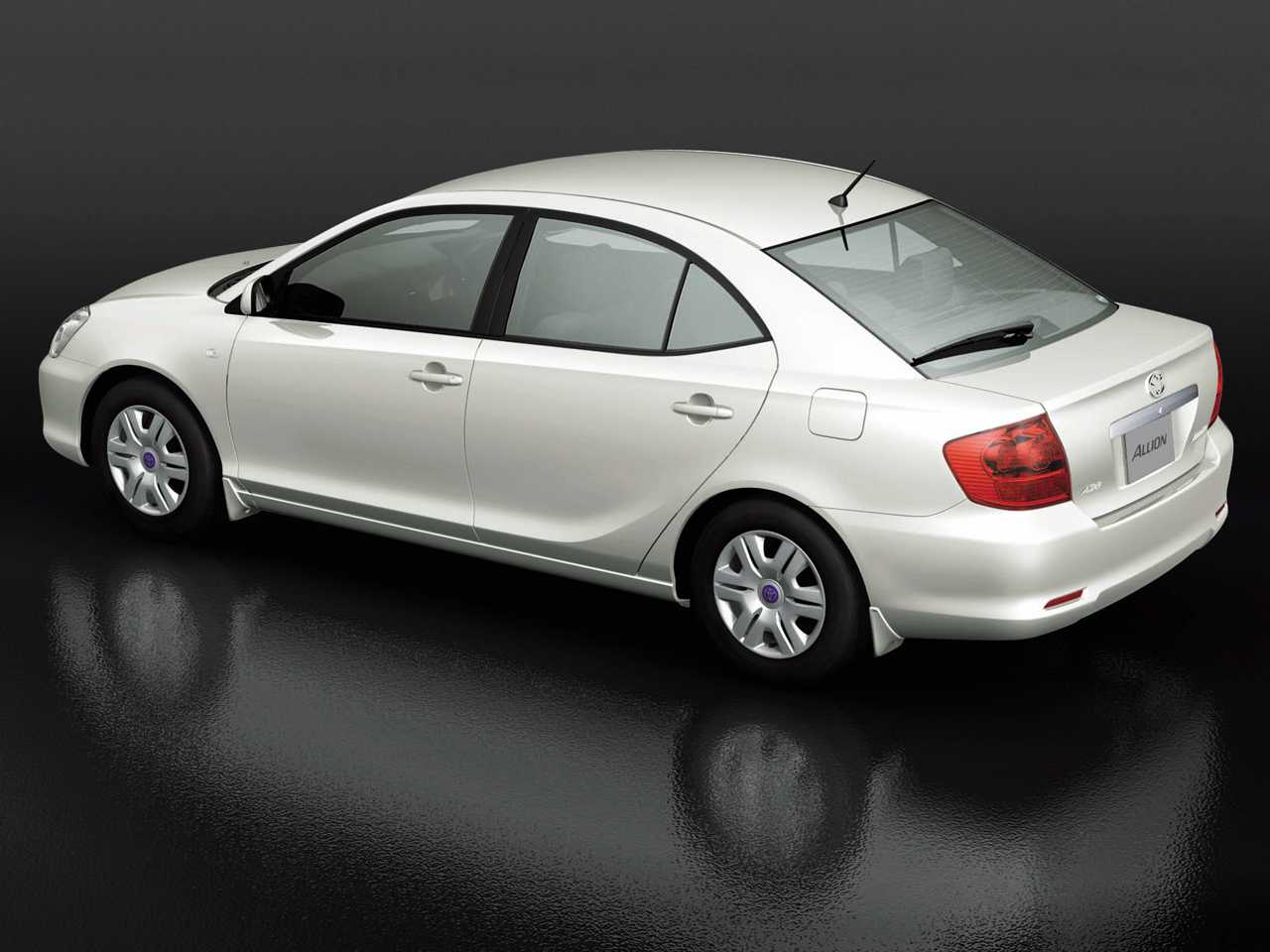

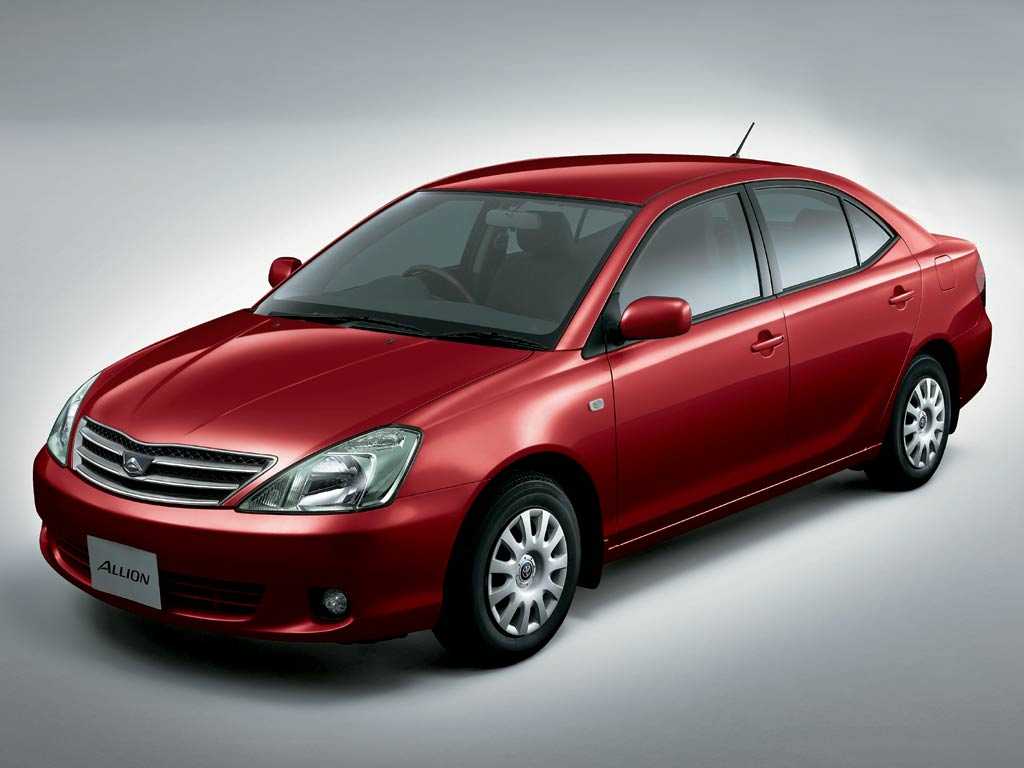

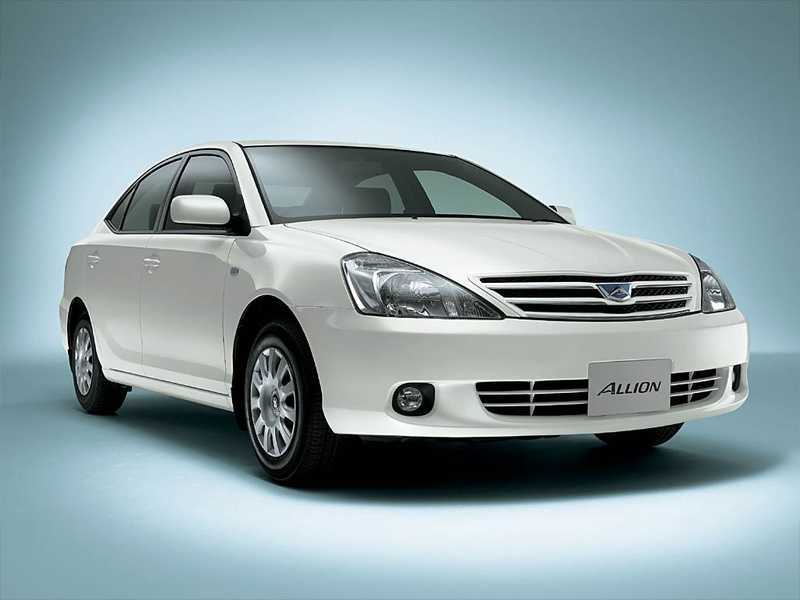

Toyota Allion 2001–2004

T240

General information

Number of doors4

Car classD

CountryJapan

Steering wheel positionRight

At a glance

Engine1497 cm3 Gasoline

Power107 hp

GearboxAutomatic

Origin

Japan

Trim

1.5 AT (109 PS)1.8 AT (132 PS)1.8 AT 4WD (125 PS)2.0 CVT (152 PS)

Specifications

Engine

Compression ratio10.5

Engine power107 hp

Engine power109 PS

Maximum torque141 N*m

Capacity1497 cm3

Engine model1nz-fe

Engine code1NZ-FE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4200 RPM

Max power at RPM6000 RPM

Cylinder bore75.0 mm

Max power (kW)80 kW

Stroke cycle84.7 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1140 kg

Rear track1460 mm

Back track width1460 mm

Height1470 mm

Front track1480 mm

Front track width1480 mm

Ground clearance160 mm

Clearance160 mm

Width1695 mm

Wheel size185/70 R14

Wheelbase2700 mm

Length4550 mm

Number of seater5

Pitch Circle DiameterDIA54.1 5x100 mm

Body typeSedan

Gearbox and handling

Turning circle10.6 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)11.5 s

Max speed180 km/h

Highway driving fuel consumption per 100 km6 l

Fuel tank capacity60 l

Mixed driving fuel consumption per 100 km6.0 l

Fuel92

Cruising rangeto 1 000 km

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
