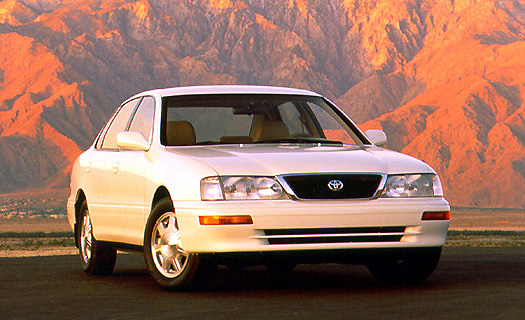

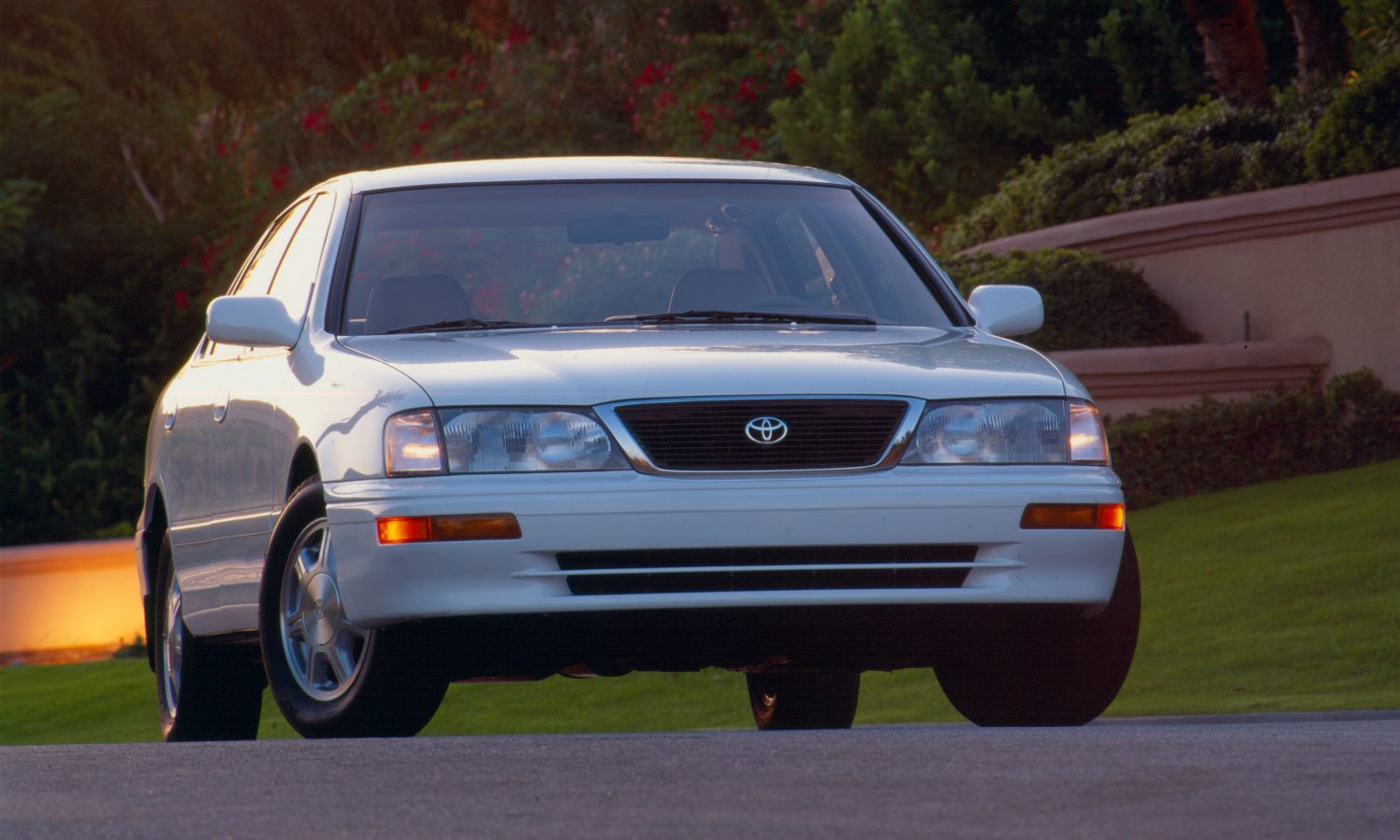

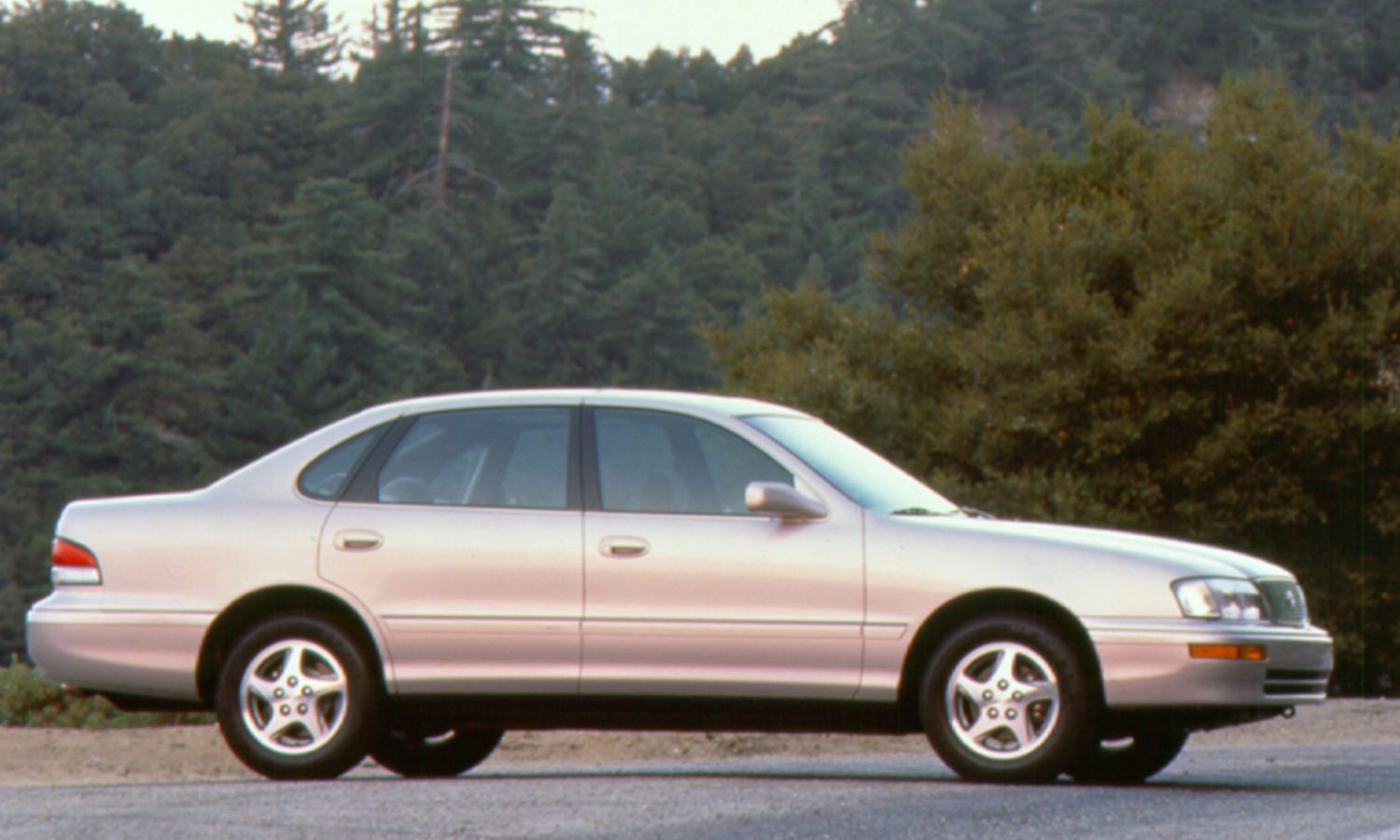

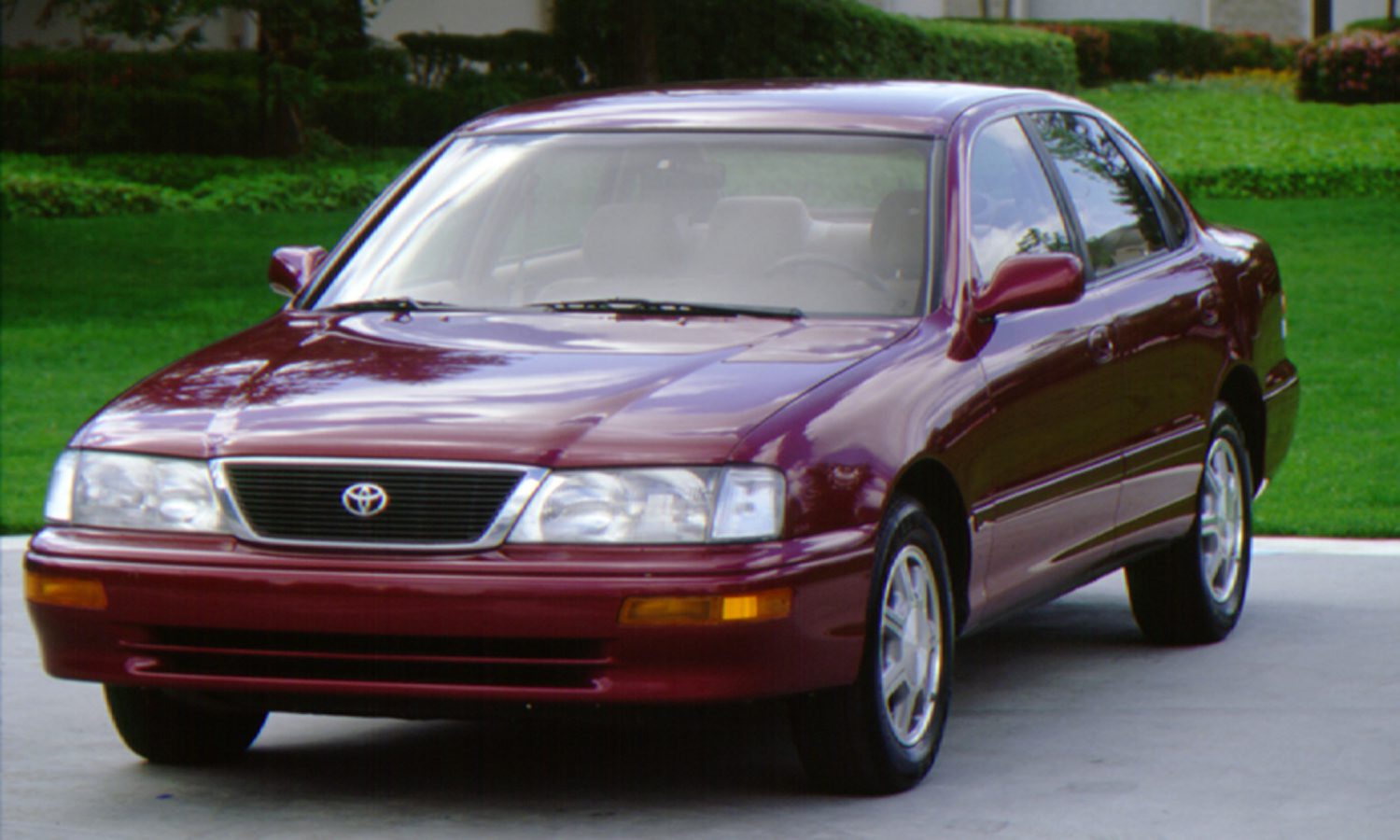

Toyota Avalon 1994–1997

1 generation

General information

Number of doors4

Car classE

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine2994 cm3 Gasoline

Power197 hp

GearboxAutomatic

Origin

Japan

Trim

3.0 AT (200 PS)3.0 AT (210 hp)

Specifications

Engine

Compression ratio10.5

Max power (kW)147 kW

Engine power197 hp

Engine code1MZ-FE

Engine power200 PS

Maximum torque284 N*m

Capacity2994 cm3

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM5400 RPM

Number of cylinders6

Stroke cycle83.0 mm

Cylinder bore87.5 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Boost typenone

Cylinder layoutV-type

Bodywork

Height1435 mm

Ground clearance145 mm

Clearance145 mm

Curb weight1470 kg

Rear track1520 mm

Back track width1520 mm

Front track1545 mm

Front track width1545 mm

Width1785 mm

Wheel size205/65 R15

Wheelbase2720 mm

Min trunk capacity435 l

Max trunk capacity435 l

Length4845 mm

Number of seater5

Pitch Circle DiameterDIA60.1 5x114.3 mm

Body typeSedan

Gearbox and handling

Turning circle11.2 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Mixed driving fuel consumption per 100 km10.5 l

Fuel tank capacity70 l

Acceleration (0-100 km/h)8.4 s

Fuel92

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
