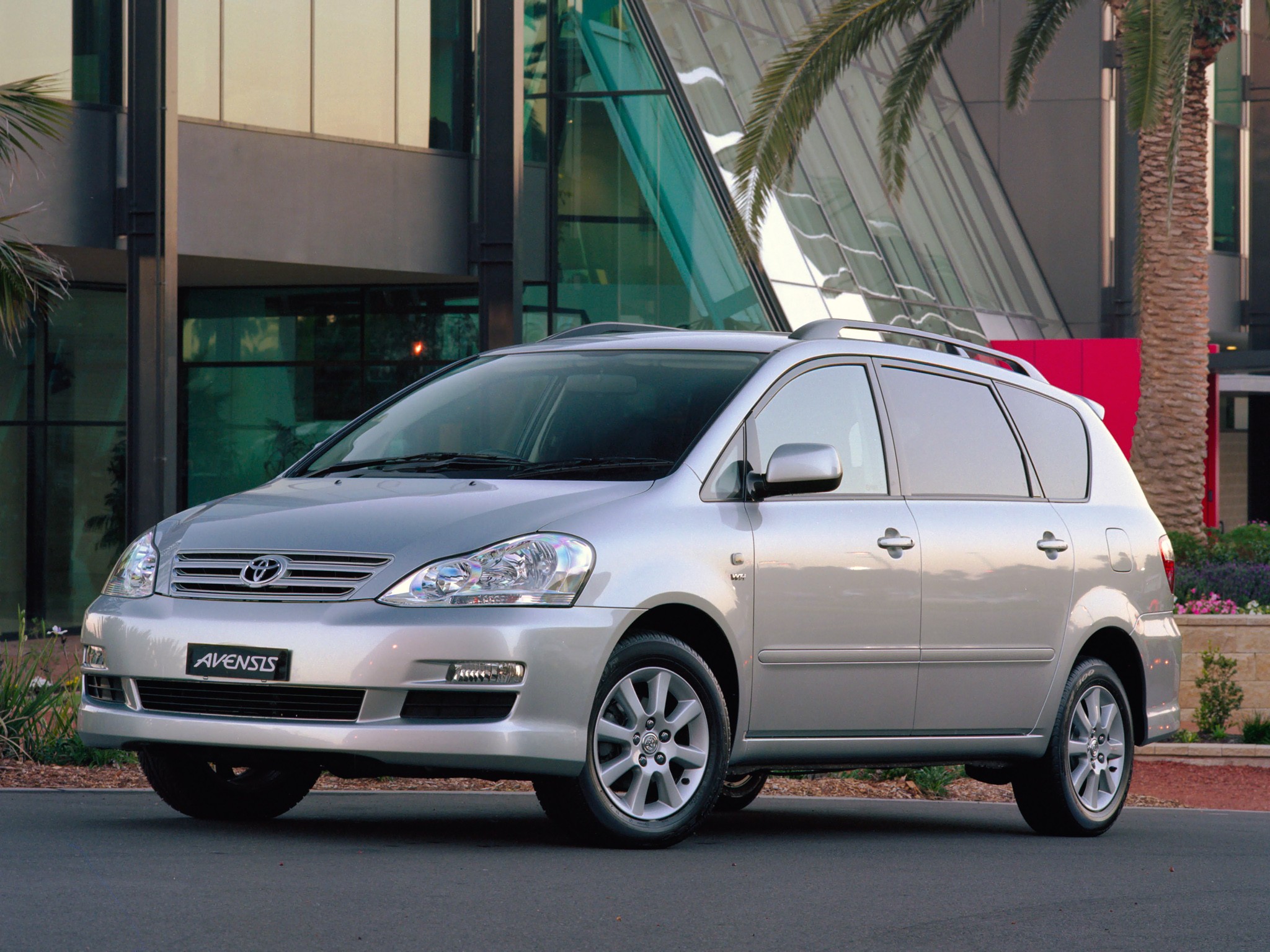

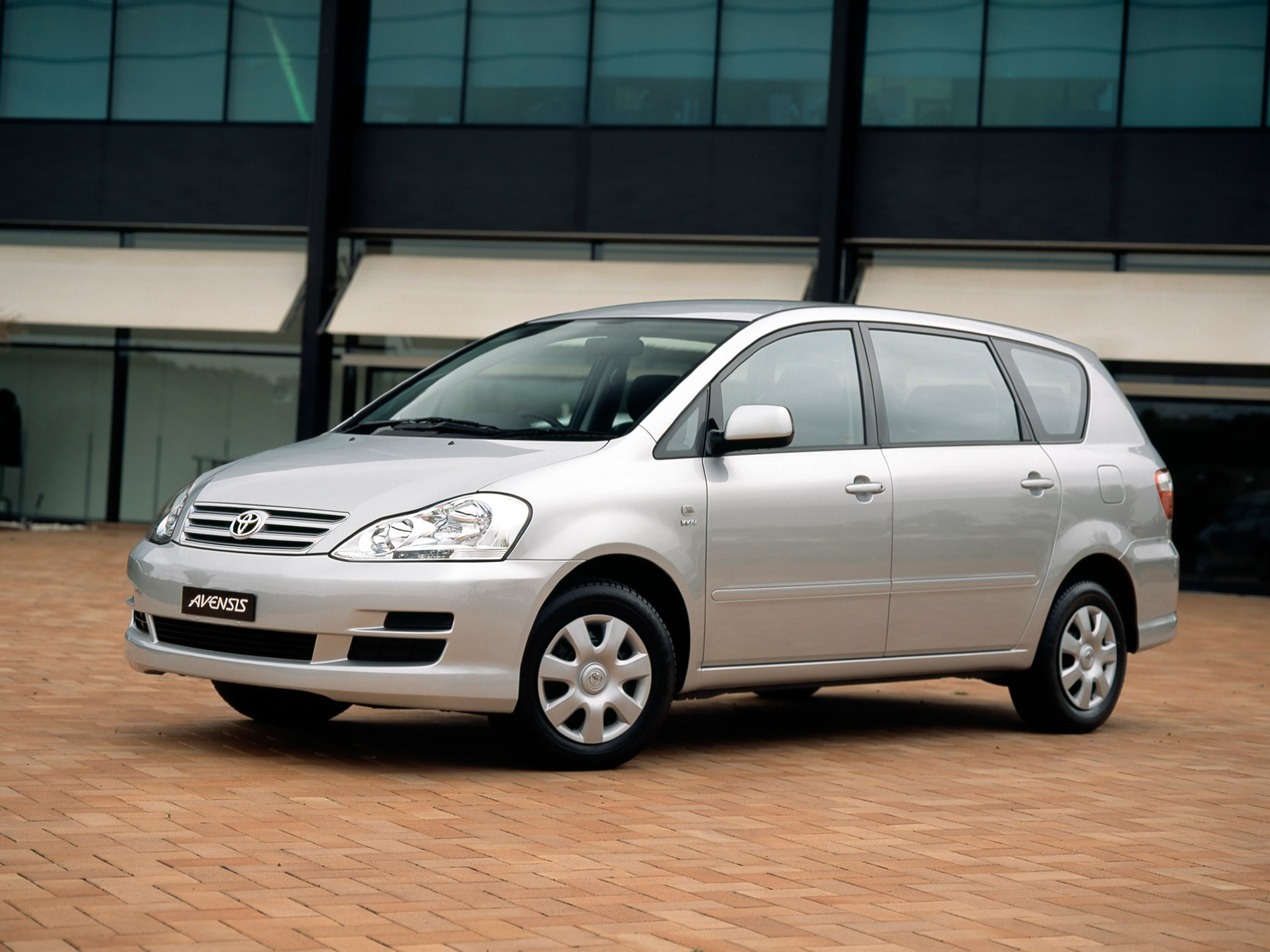

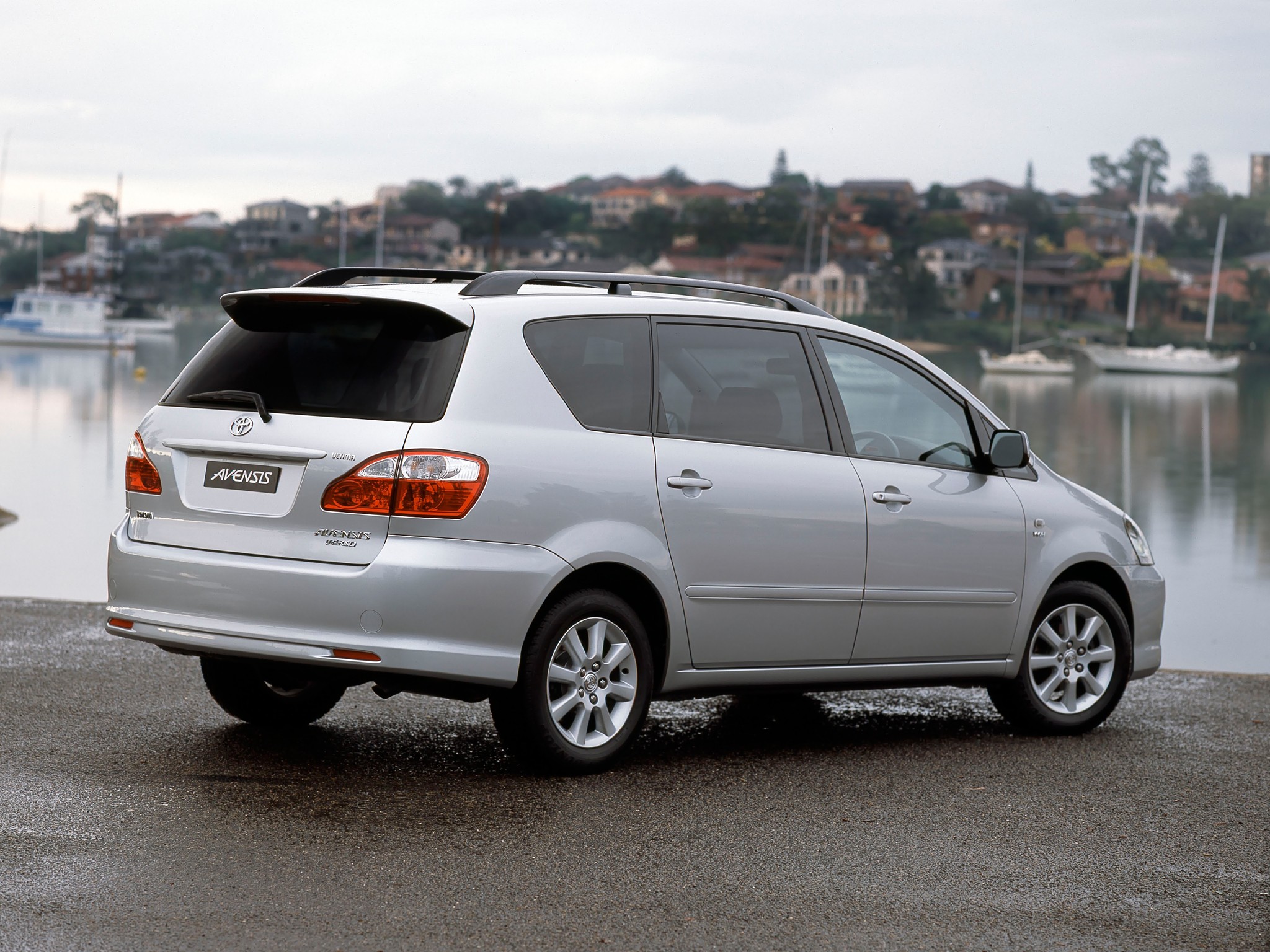

Toyota Avensis Verso 2003–2009

1 generation [restyling]

General information

Number of doors5

CountryJapan

Steering wheel positionLeft

Car classM

At a glance

Engine1998 cm3 Gasoline

Power148 hp

GearboxAutomatic

Origin

Japan

Trim

2.0 AT (150 PS)2.0 MT (150 PS)2.0 TD MT (116 PS)

Specifications

Engine

Max power (kW)110 kW

Engine power148 hp

Engine power150 PS

Maximum torque192 N*m

Capacity1998 cm3

Engine code1AZ-FSE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4000 RPM

Max power at RPM6000 RPM

Cylinder bore86.0 mm

Stroke cycle86.0 mm

Compression ratio9.8

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1460 kg

Ground clearance150 mm

Clearance150 mm

Rear track1500 mm

Back track width1500 mm

Front track width1505 mm

Front track1506 mm

Height1725 mm

Width1760 mm

Wheel size205/60 R16, 205/65 R15

Full weight2175 kg

Max trunk capacity2422 l

Min trunk capacity282 l

Wheelbase2825 mm

Length4690 mm

Payload584 kg

Number of seater7

Pitch Circle DiameterDIA60.1 5x114.3 mm

Body typeMinivan

Gearbox and handling

Turning circle11.8 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

City driving fuel consumption per 100 km11.8 l

Acceleration (0-100 km/h)12.1 s

Max speed180 km/h

Fuel tank capacity60 l

Mixed driving fuel consumption per 100 km6.5 l

Highway driving fuel consumption per 100 km7.3 l

Fuel95

Cruising rangefrom 500 to 820 km

Suspension and brakes

Front brakesDisc

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
