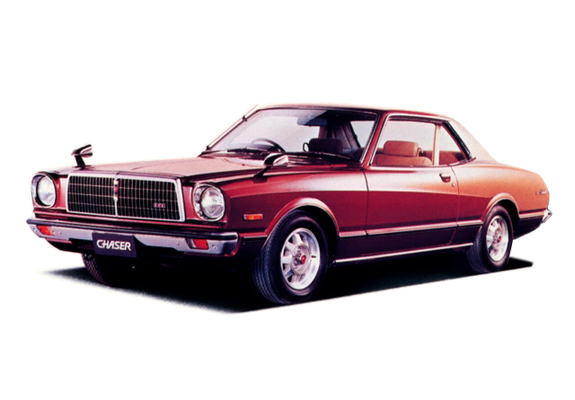

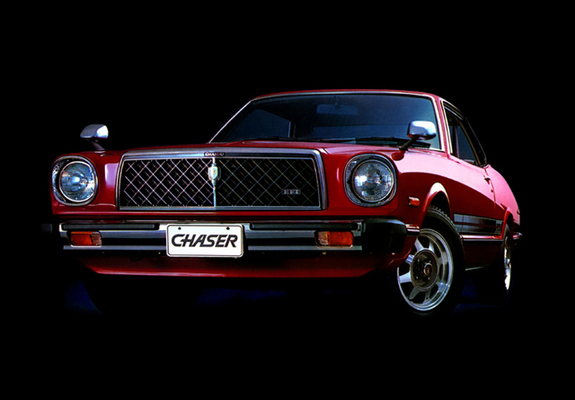

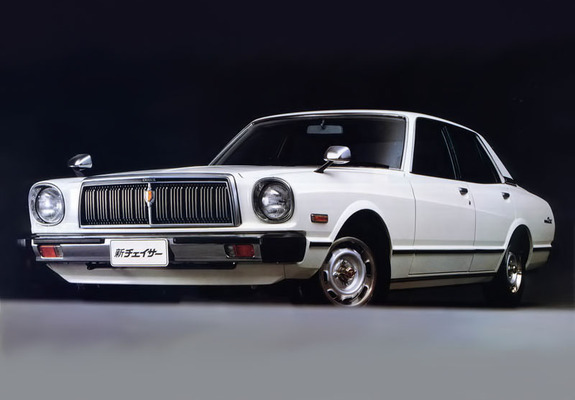

Toyota Chaser 1977–1980

1 generation (X40)

General information

Number of doors4

Car classD

CountryJapan

Steering wheel positionRight

At a glance

Engine1972 cm3 Gasoline

Power103 hp

GearboxManual

Origin

Japan

Trim

2.0 MT (105 PS)2.0 MT RWD (105 PS)

Specifications

Engine

Engine power103 hp

Engine power105 PS

Maximum torque162 N*m

Capacity1972 cm3

Valves per cylinder2

Engine model21r-u

Engine code21R-U

Max power at RPM3600 RPM

Turnover of maximum torque3600 RPM

Number of cylinders4

Max power (kW)77 kW

Cylinder bore84.0 mm

Compression ratio8.5

Stroke cycle89.0 mm

Injection typecarburetor

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Front track width1370 mm

Back track width1370 mm

Height1420 mm

Width1670 mm

Clearance170 mm

Wheelbase2645 mm

Length4640 mm

Number of seater5

Body typeSedan

Gearbox and handling

Number of gear4

Gearbox typeManual

Drive wheelsRear wheel drive

Operating characteristics

Max speed166 km/h

Suspension and brakes

Back suspensionDependent, spring

Front brakesDisc

Rear brakesdrum

Front suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.

No grades recorded for this trim yet.
