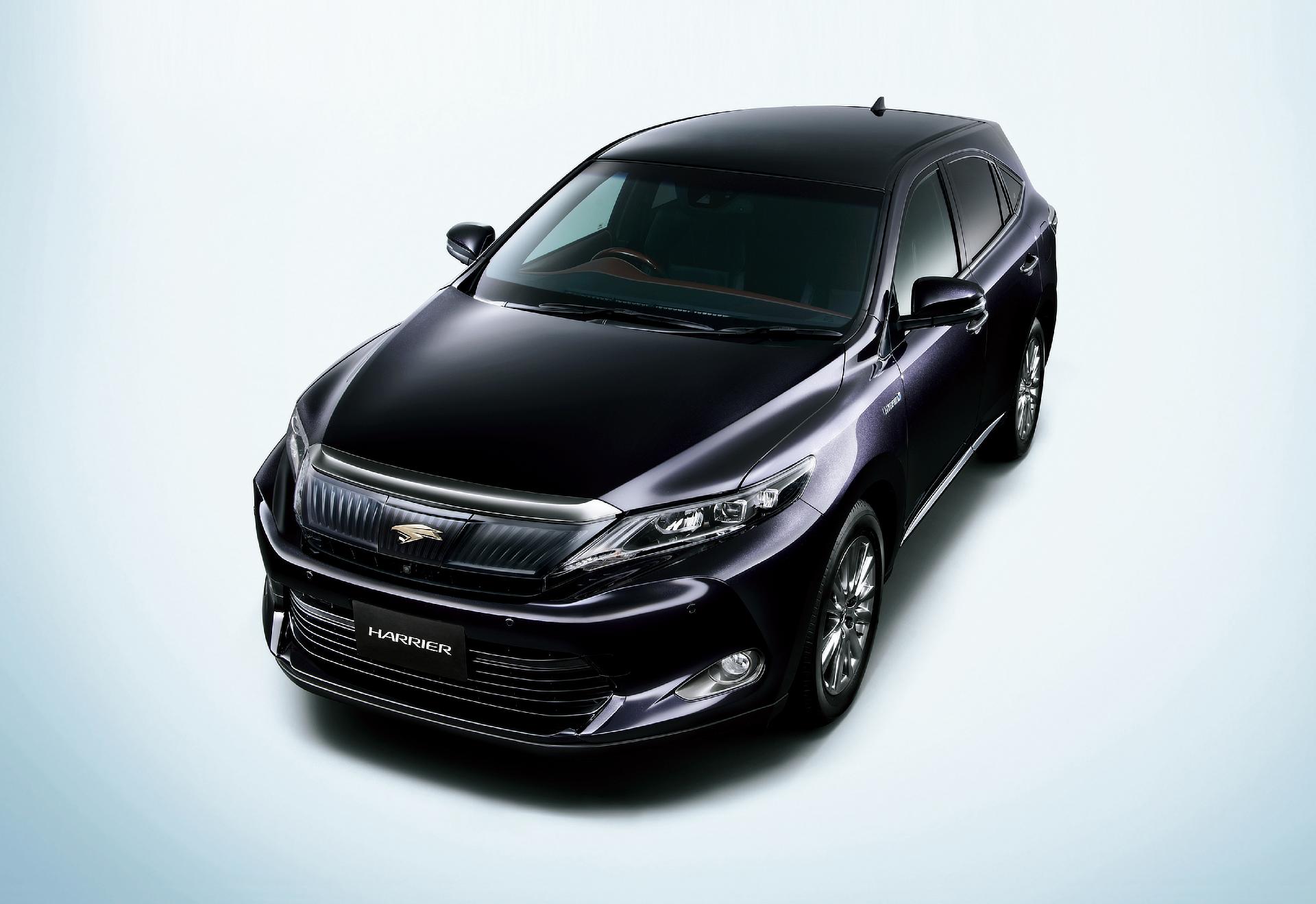

Toyota Harrier 2013–2017

3 generation (XU60)

General information

Number of doors5

Car classD

CountryJapan

Steering wheel positionRight

At a glance

Engine1986 cm3 Gasoline

Power149 hp

GearboxContinuously variable transmission (CVT)

Origin

Japan

Trim

2.0 CVT (151 PS)2.0 CVT 4WD (151 hp)2.4 Hybrid CVT 4WD (152 hp)2.5 CVT (152 PS)

Specifications

Engine

Compression ratio10

Max power (kW)111 kW

Engine power149 hp

Engine power151 PS

Maximum torque193 N*m

Capacity1986 cm3

Turnover of maximum torque3800 RPM

Engine model3zr-fae

Engine code3ZR-FAE

Number of cylinders4

Valves per cylinder4

Max power at RPM6100 RPM

Cylinder bore80.5 mm

Stroke cycle97.6 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Front track width1560 mm

Back track width1560 mm

Front track1570 mm

Rear track1570 mm

Curb weight1660 kg

Height1690 mm

Clearance175 mm

Width1835 mm

Ground clearance190 mm

Full weight1935 kg

Wheel size225/65 R17, 235/55 R18

Wheelbase2660 mm

Length4720 mm

Number of seater5

Body typeCrossover

Pitch Circle DiameterDIA60.1 5x114.3 mm

Gearbox and handling

Turning circle10.6 m

Drive wheelsAll wheel drive (AWD)

Gearbox typeContinuously variable transmission (CVT)

Operating characteristics

Max speed180 km/h

Fuel tank capacity60 l

Mixed driving fuel consumption per 100 km6.7 l

Acceleration (0-100 km/h)7.3 s

Fuel95

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
