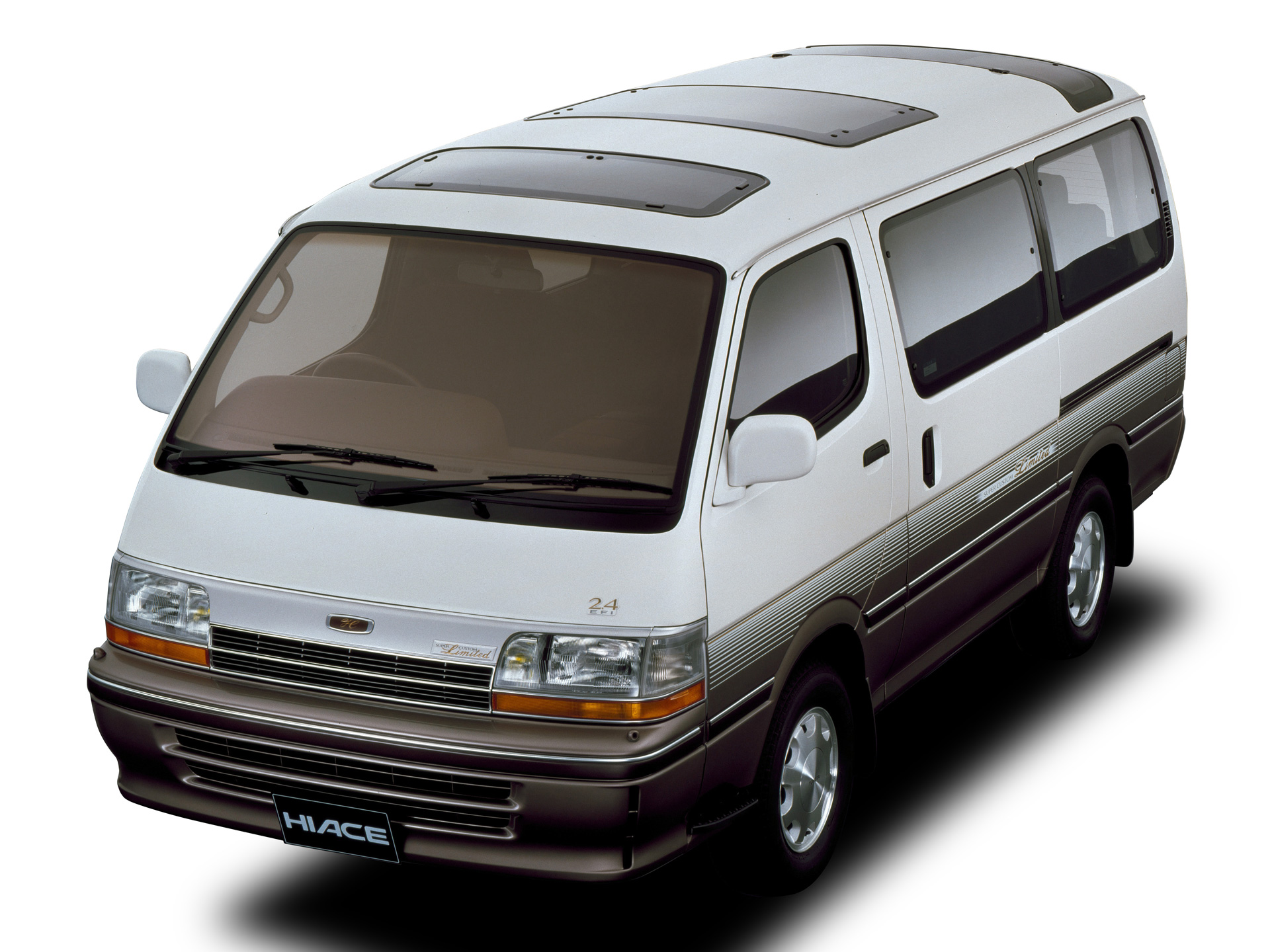

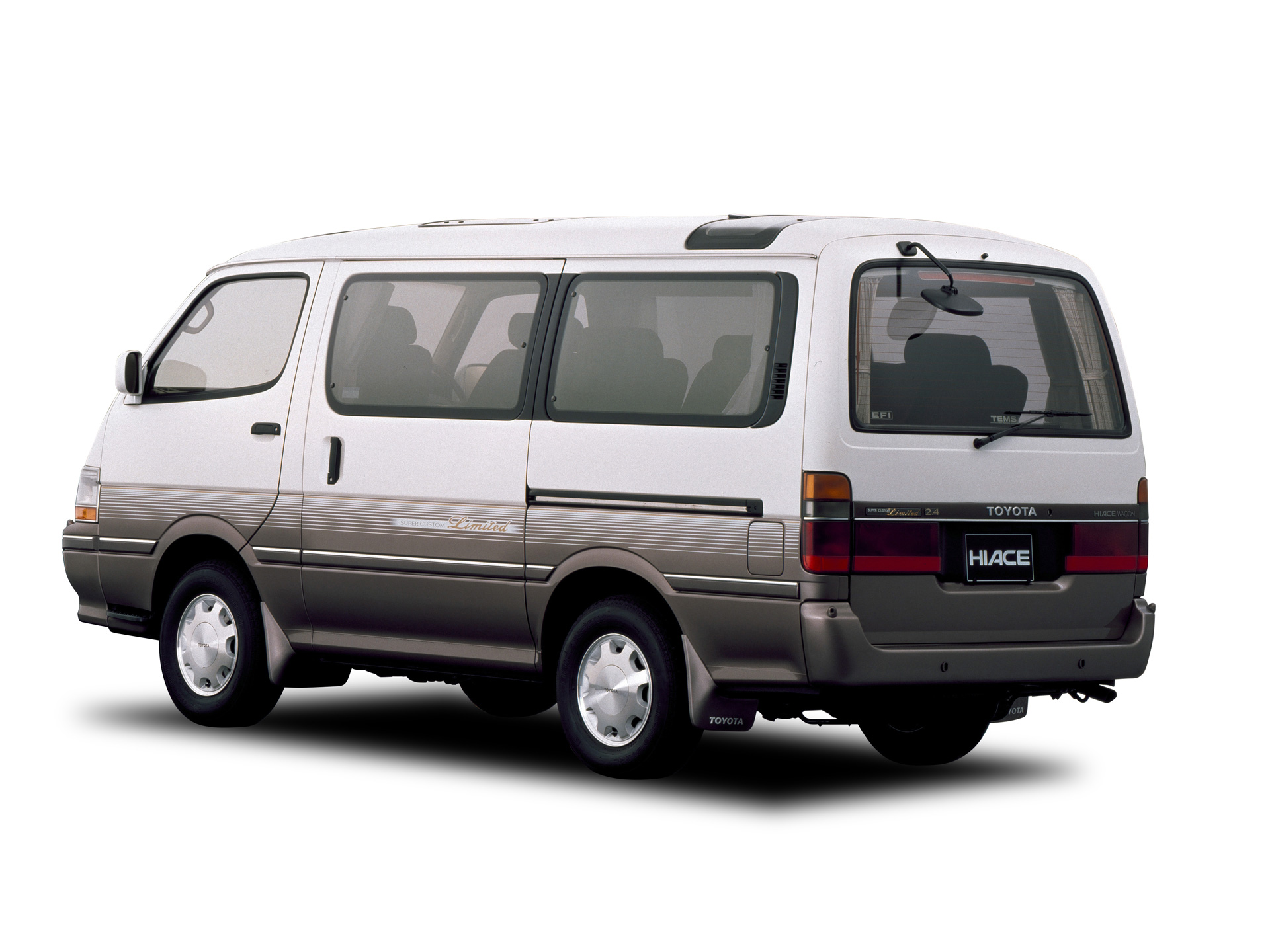

Toyota Hiace 1989–2004
H100General information
Number of doors4
CountryJapan
Steering wheel positionLeft/Right
Car classM
At a glance
Engine1998 cm3 Gasoline
Power109 hp
GearboxAutomatic
Origin
Japan
JapanSeries
Trim
2.0 AT (110 PS)2.0 AT (133 PS)2.0 MT (110 PS)2.0 MT (133 PS)2.4 AT (120 PS)2.4 AT (132 PS)2.4 D MT (85 hp)2.4 MT (120 PS)2.4 MT (132 PS)2.4 TD AT (94 hp)2.4 TD MT (94 hp)2.5 AT (85 hp)2.5 AT (94 PS)2.5 MT (80 PS)2.5 MT (85 hp)2.5 MT (94 PS)2.8 D AT 4WD 8seat (91 PS)2.8 D MT 4WD 8seat (91 PS)3.0 AT (91 PS)3.0 MT (91 PS)3.0 TD AT 4WD 8seat (130 hp)3.0 TD AT 8seat (130 hp)3.0 TD AT 8seat (140 hp)3.0 TD MT (130 hp)3.0 TD MT 8seat (130 hp)3.0 TD MT 8seat (140 hp)
Specifications
Engine
Engine power109 hp
Engine power110 PS
Maximum torque167 N*m
Capacity1998 cm3
Engine model1rz-e
Engine code1RZ-E
Valves per cylinder2
Turnover of maximum torque2600 RPM
Number of cylinders4
Max power at RPM5200 RPM
Max power (kW)81 kW
Cylinder bore86 mm
Stroke cycle86 mm
Compression ratio9
Engine placementcentral
Injection typedistributed injection (multipoint)
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Timing beltOHC
Presence of intercoolerPresent
Bodywork
Rear track1430 mm
Back track width1445 mm
Front track1450 mm
Front track width1465 mm
Width1690 mm
Ground clearance170 mm
Clearance185 mm
Wheel size185/75 R15
Curb weight2010 kg
Height2235 mm
Wheelbase2890 mm
Full weight3050 kg
Payload495 kg
Length5250 mm
Number of seater8
Pitch Circle DiameterDIA67.1 5x114.3 mm
Body typeMinivan
Gearbox and handling
Number of gear4
Turning circle9.4 m
Gearbox typeAutomatic
Drive wheelsRear wheel drive
Operating characteristics
Mixed driving fuel consumption per 100 km11.5 l
Fuel tank capacity70 l
Fuel92
Suspension and brakes
Rear brakesdrum
Front suspensionIndependent, Torsion
Back suspensionTrailing arms, Helical springs
Front brakesventilated disc
Grades & features
Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
