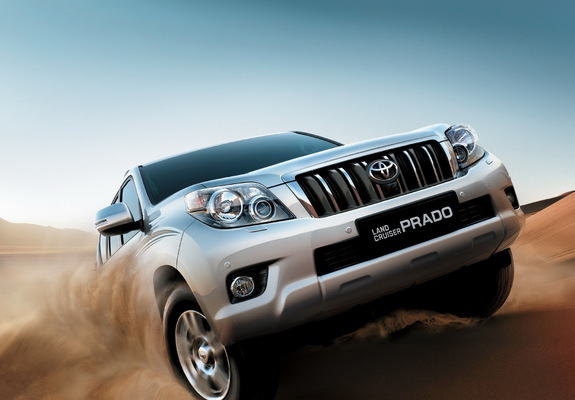

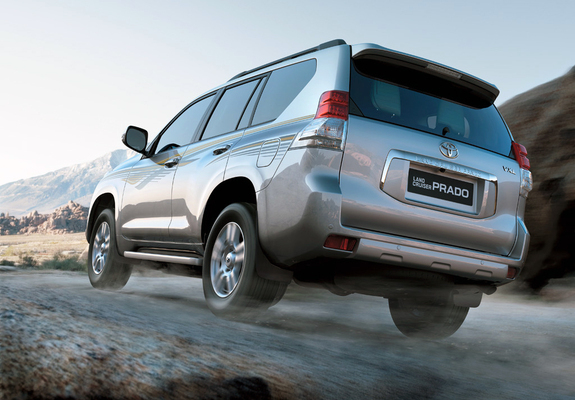

Toyota Land Cruiser Prado 2009–2013

4 Generation (J150)
General information
Number of doors3
Car classJ
CountryJapan
Steering wheel positionLeft/Right
At a glance
Engine2693 cm3 Gasoline
Power161 hp
GearboxAutomatic
OriginJapan
Series
SUVSUV 5 doors
Trim
2.7 AT 4WD (163 PS)2.7 MT 4WD (163 hp)3.0 AT (190 PS)3.0 D AT 4WD (173 hp)3.0 D AT 4WD (Luxe) (173 PS)3.0 D MT 4WD (173 PS)3.0 MT (190 PS)4.0 AT 4WD (282 hp)

Specifications

Engine
Compression ratio10.2
Max power (kW)120 kW
Engine power161 hp
Engine power163 PS
Maximum torque241 N*m
Capacity2693 cm3
Engine model2tr-fe
Engine code2TR-FE
Turnover of maximum torque3800 RPM
Number of cylinders4
Valves per cylinder4
Max power at RPM5200 RPM
Cylinder bore95 mm
Stroke cycle95 mm
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, longitudinal
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Front/rear axle load1120/1705 kg
Max trunk capacity1434 l
Front track1585 mm
Rear track1585 mm
Front track width1605 mm
Back track width1605 mm
Height1830 mm
Width1885 mm
Curb weight2060 kg
Ground clearance220 mm
Clearance220 mm
Wheelbase2450 mm
Wheel size245/70 R17, 265/60 R18, 265/65 R17
Full weight2850 kg
Min trunk capacity381 l
Trailer load (with brakes)4350 kg
Length4485 mm
Number of seater5
Payload750 kg
Body typeCrossover
Pitch Circle DiameterDIA106.1 6x139.7 mm
Gearbox and handling
Turning circle11.6 m
Number of gear4
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Mixed driving fuel consumption per 100 km11.4 l
Acceleration (0-100 km/h)13.9 s
Max speed165 km/h
Fuel tank capacity87 l
Fuel95
Emission standardsEuro 4
Suspension and brakes
Back suspensionDependent, spring
Front suspensionIndependent, spring
Front brakesventilated disc
Rear brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
