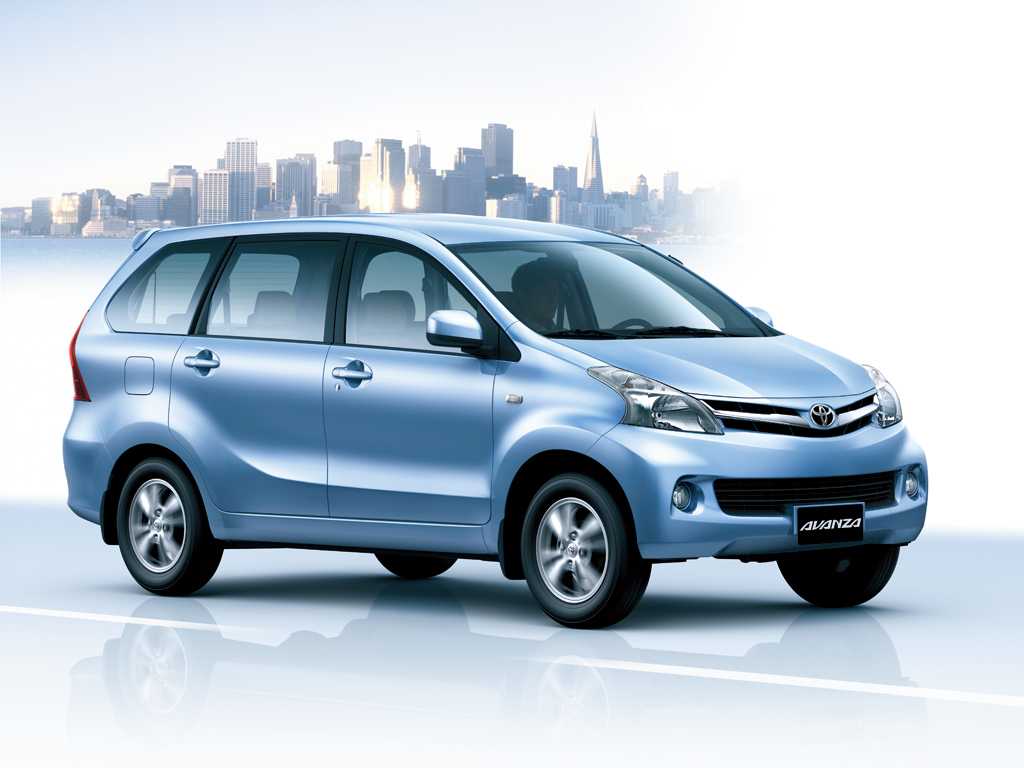

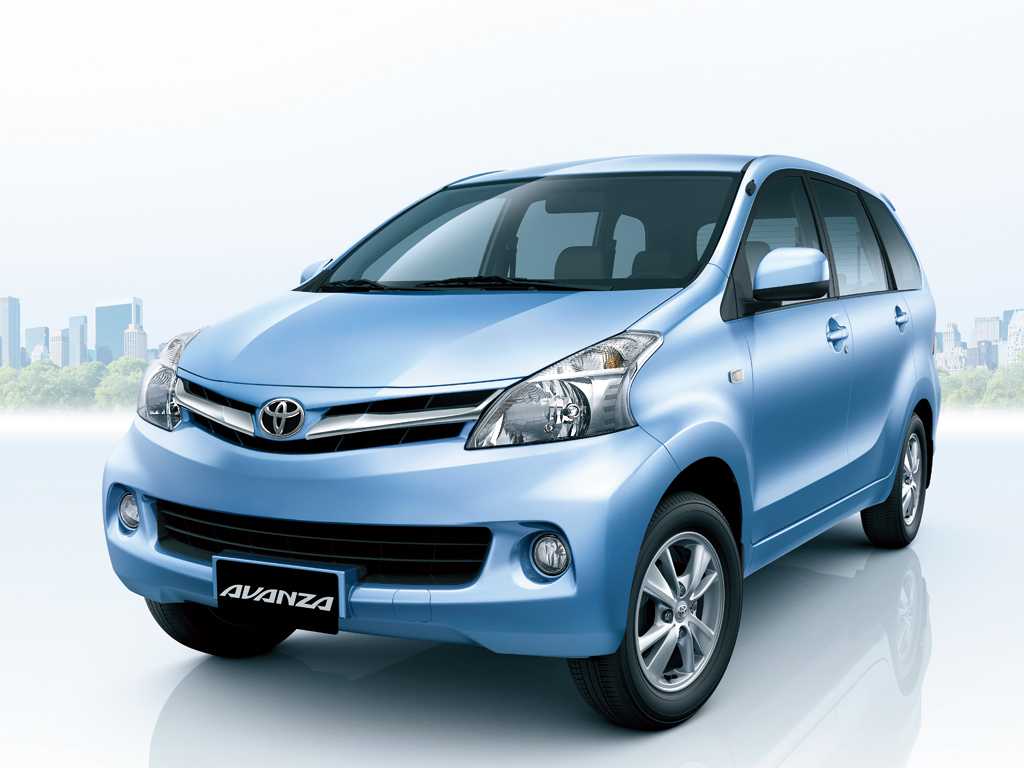

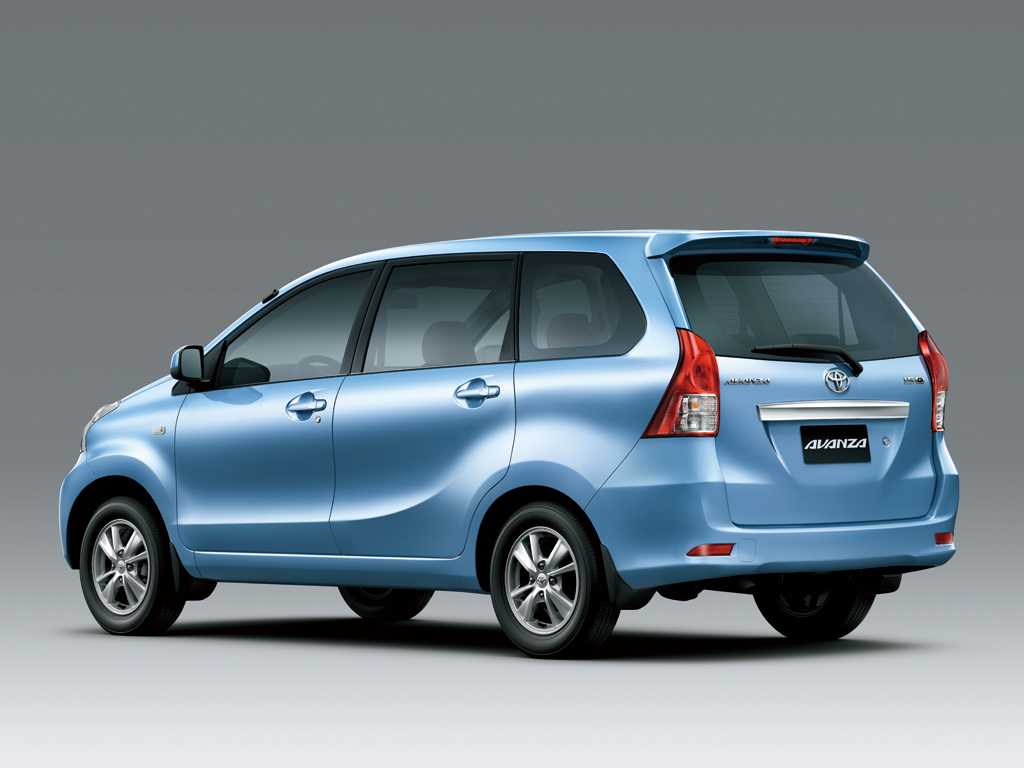

Toyota Avanza 2011–2015

2 generation

General information

Number of doors5

CountryJapan

Steering wheel positionLeft

Car classM

At a glance

Engine1329 cm3 Gasoline

Power91 hp

GearboxAutomatic

Origin

Japan

Trim

1.3 AT (92 PS)1.3 MT (92 PS)1.5 AT (104 hp)1.5 MT (104 hp)

Specifications

Engine

Compression ratio11

Maximum torque117 N*m

Capacity1329 cm3

Engine code1NR-VE

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4400 RPM

Max power at RPM6000 RPM

Max power (kW)68 kW

Cylinder bore72.5 mm

Stroke cycle80.5 mm

Engine power91 hp

Engine power92 PS

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1080 kg

Front track1425 mm

Front track width1425 mm

Rear track1435 mm

Back track width1435 mm

Width1660 mm

Full weight1680 kg

Height1695 mm

Ground clearance180 mm

Clearance180 mm

Wheel size185/70 R14, 195/60 R15, 205/50 R16

Wheelbase2655 mm

Length4140 mm

Min trunk capacity600 l

Max trunk capacity600 l

Payload610 kg

Number of seater7

Pitch Circle DiameterDIA60.1 4x114.3 mm

Body typeMinivan

Gearbox and handling

Number of gear4

Turning circle9.4 m

Gearbox typeAutomatic

Drive wheelsRear wheel drive

Operating characteristics

Acceleration (0-100 km/h)14.9 s

Max speed165 km/h

Fuel tank capacity45 l

Mixed driving fuel consumption per 100 km8.0 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
