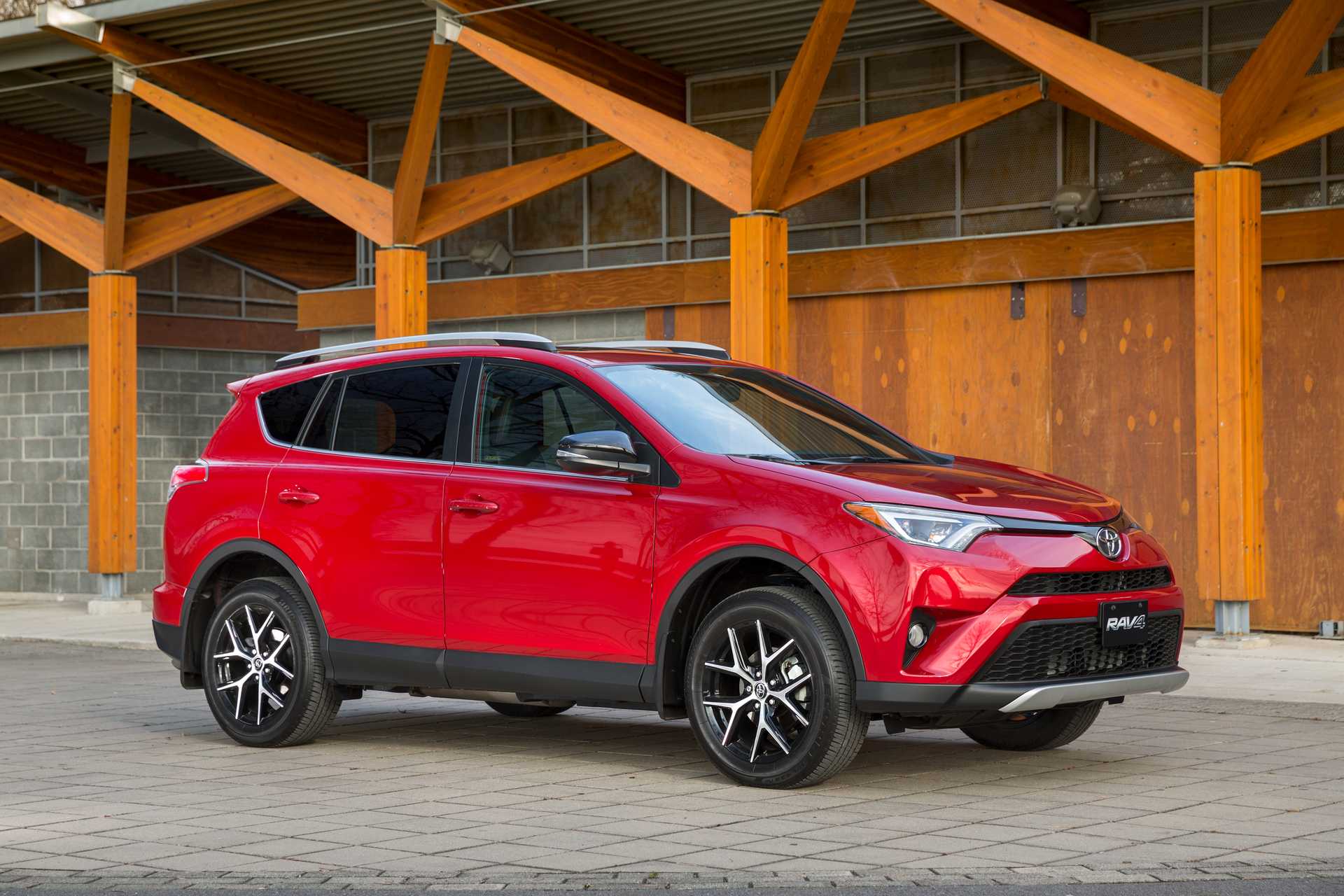

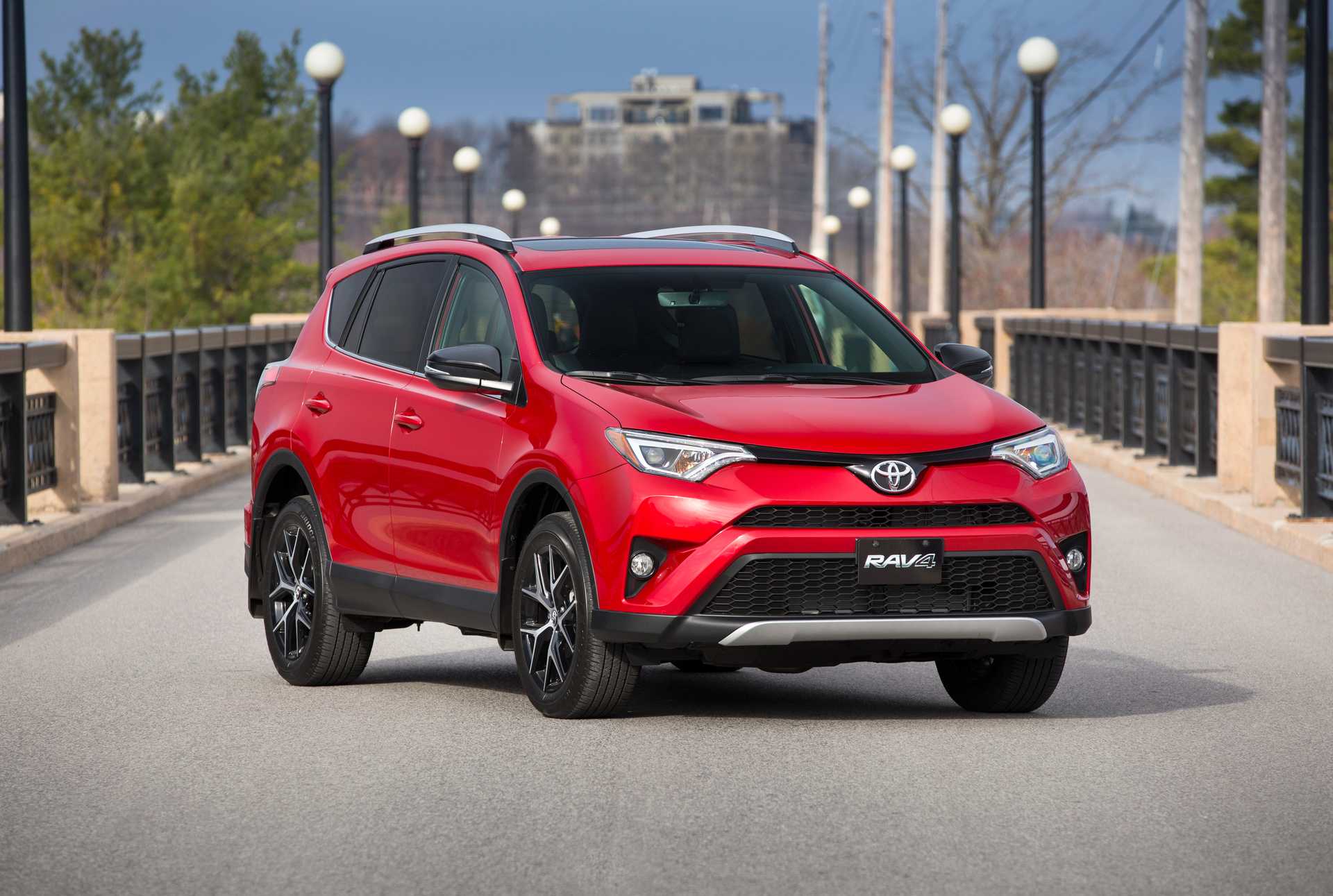

Toyota RAV4 2015–2019

4 generation (XA40) [restyling]
No photos yet2.0 CVT 4WD (146 hp)
General information
Number of doors5
Car classC
CountryJapan
Steering wheel positionLeft
At a glance
Engine1986 cm3 Gasoline
Power146 hp
GearboxContinuously variable transmission (CVT)
OriginJapan
Trim
2.0 CVT 4WD (146 hp)2.0 CVT 4WD (151 PS)2.0 MT (143 PS)2.0 MT 4WD (146 hp)2.0 MT 4WD (151 PS)2.2 AT 4WD (150 PS)2.5 AT (179 hp)2.5 AT 4WD (180 hp)2.5 CVT 4WD (197 PS)

Specifications

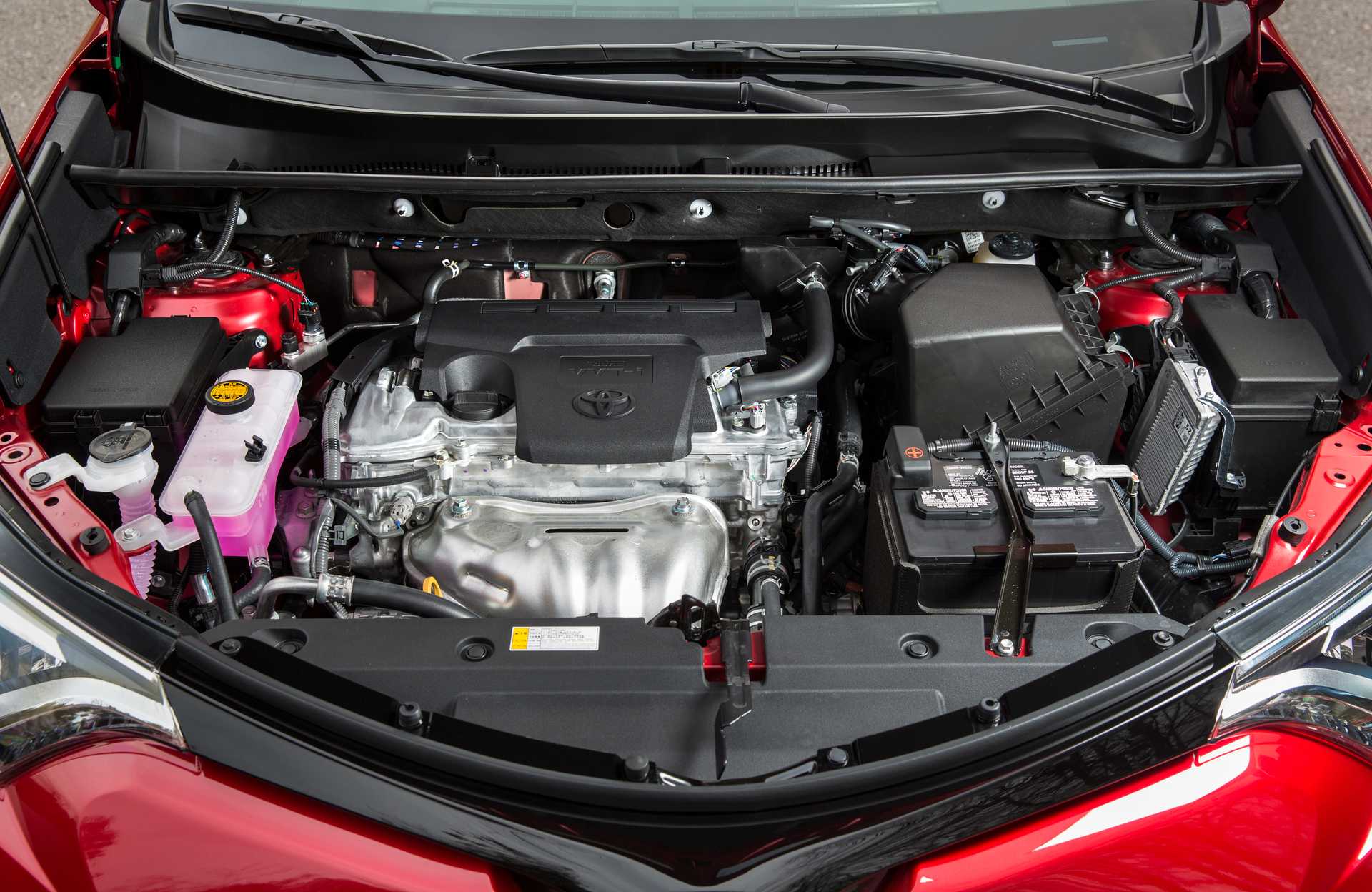

Engine
Compression ratio10
Max power (kW)107 kW
Engine power145 PS
Engine power146 hp
Maximum torque187 N*m
Capacity1986 cm3
Turnover of maximum torque3600 RPM
Engine model3ZR-FE
Engine code3ZR-FE
Number of cylinders4
Valves per cylinder4
Max power at RPM6200 RPM
Cylinder bore80.5 mm
Stroke cycle97.6 mm
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Front track width1570 mm
Back track width1570 mm
Curb weight1645 kg
Height1670 mm
Width1845 mm
Clearance197 mm
Full weight2110 kg
Wheel size225/65 R17
Wheelbase2660 mm
Length4605 mm
Number of seater5
Min trunk capacity577 l
Disc size6.5x17 ET39, 7.5x18 ET45, 7x17 ET39
Body typeCrossover
Pitch Circle DiameterDIA60.1 5x114.3 mm
Gearbox and handling
Drive wheelsAll wheel drive (AWD)
Gearbox typeContinuously variable transmission (CVT)
Operating characteristics
Acceleration (0-100 km/h)11.3 s
CO2 emissions178 g/km
Max speed180 km/h
Fuel tank capacity60 l
Highway driving fuel consumption per 100 km6.4 l
Mixed driving fuel consumption per 100 km7.5 l
City driving fuel consumption per 100 km9.4 l
Fuel95
Emission standardsEuro 5
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
