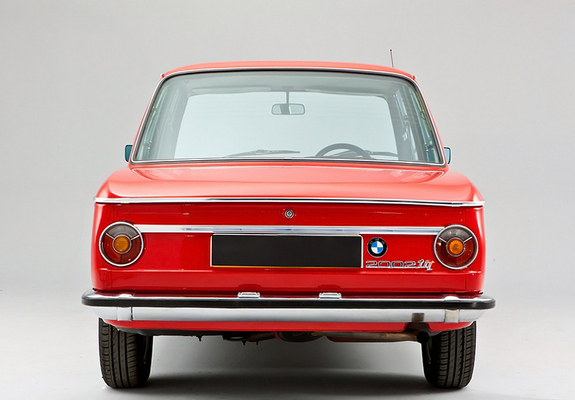

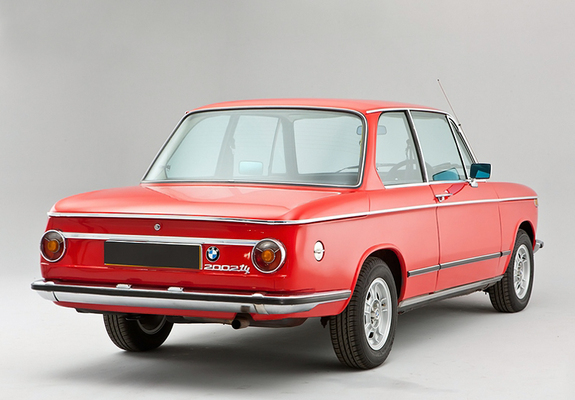

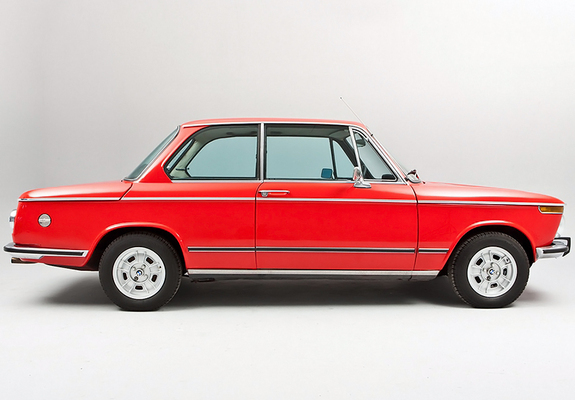

BMW 02 (E10) 1966–1977
1 generationNo photos yet1.6 MT (85 hp)
General information
Number of doors2
Car classD
CountryGermany
Steering wheel positionLeft
At a glance
Engine1574 cm3 Gasoline
Power85 hp
GearboxManual
Origin
Germany
GermanySpecifications
Engine
Maximum torque130 N*m
Capacity1574 cm3
Valves per cylinder2
Turnover of maximum torque3500 RPM
Number of cylinders4
Max power at RPM5700 RPM
Max power (kW)63 kW
Stroke cycle71.0 mm
Cylinder bore84.0 mm
Engine power85 hp
Engine power86 PS
Compression ratio8.6
Injection typecarburetor
Engine placementFront, longitudinal
Engine typeGasoline
Cylinder layoutinline
Engine codeM10B16
Engine modelM10B16
Boost typenone
Timing beltSOHC
Bodywork
Front track width1330 mm
Back track width1330 mm
Height1360 mm
Width1590 mm
Clearance160 mm
Wheel size165/80/R13
Wheelbase2500 mm
Number of seater4
Length4230 mm
Curb weight980 kg
Body typeCabriolet
Gearbox and handling
Number of gear4
Gearbox typeManual
Drive wheelsRear wheel drive
Operating characteristics
Acceleration (0-100 km/h)13.3 s
Max speed162 km/h
Fuel tank capacity46 l
Fuel92
Highway driving fuel consumption per 100 km9.9 l
Suspension and brakes
Front brakesDisc
Rear brakesdrum
Front suspensionIndependent, spring
Back suspensionIndependent, spring
