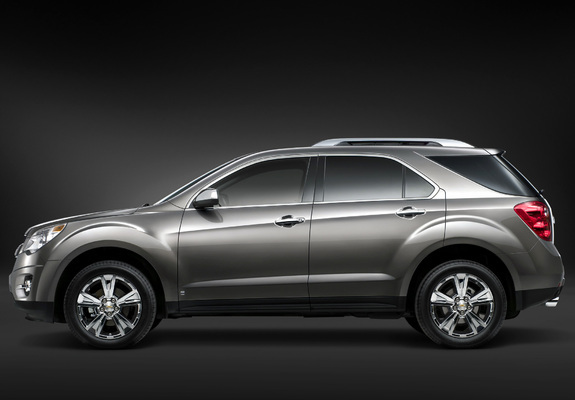

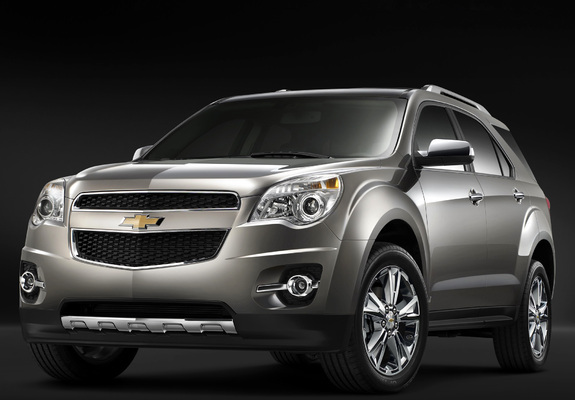

Chevrolet Equinox 2009–2015

2 generation
No photos yet2.4 Ecotec AT 4WD (182 PS)
General information
Number of doors5
Car classD
Steering wheel positionLeft
CountryUSA
At a glance
Engine2384 cm3 Gasoline
Power180 hp
GearboxAutomatic
OriginUnited States
Trim
2.4 Ecotec AT (182 hp)2.4 Ecotec AT 4WD (182 PS)3.0 AT (264 PS)3.0 AT 4WD (264 hp)3.6 AT (301 hp)3.6 AT 4WD (301 hp)

Specifications

Engine
Compression ratio10
Max power (kW)134 kW
Engine power180 hp
Engine power182 PS
Maximum torque233 N*m
Capacity2384 cm3
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4900 RPM
Max power at RPM6700 RPM
Cylinder bore88.0 mm
Stroke cycle98.0 mm
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine typeGasoline
Cylinder layoutinline
Engine modellaf
Engine codeLAF
Boost typenone
Bodywork
Rear track1570 mm
Back track width1570 mm
Front track1587 mm
Front track width1587 mm
Height1684 mm
Curb weight1782 kg
Max trunk capacity1803 l
Width1842 mm
Ground clearance199 mm
Clearance199 mm
Wheel size225/55 R18, 225/65 R17
Full weight2300 kg
Wheelbase2857 mm
Trailer load (with brakes)2980 kg
Length4771 mm
Number of seater5
Payload518 kg
Loading height731 mm
Min trunk capacity889 l
Body typeCrossover
Pitch Circle DiameterDIA70.3 5x115 mm
Gearbox and handling
Turning circle12.2 m
Number of gear6
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
Mixed driving fuel consumption per 100 km10.2 l
Acceleration (0-100 km/h)10.8 s
City driving fuel consumption per 100 km11.8 l
Max speed187 km/h
Fuel tank capacity71 l
Highway driving fuel consumption per 100 km8.1 l
Fuel92
Cruising rangefrom 600 to 880 km
Suspension and brakes
Front brakesDisc
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
