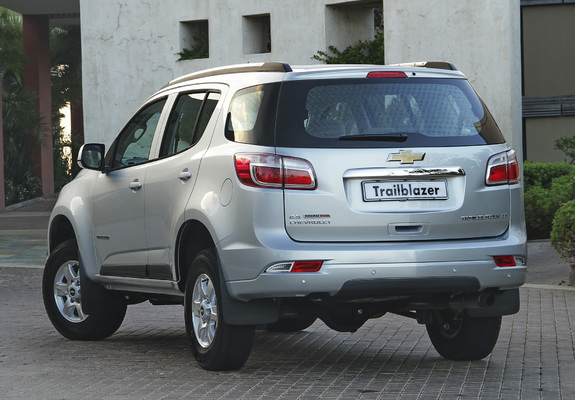

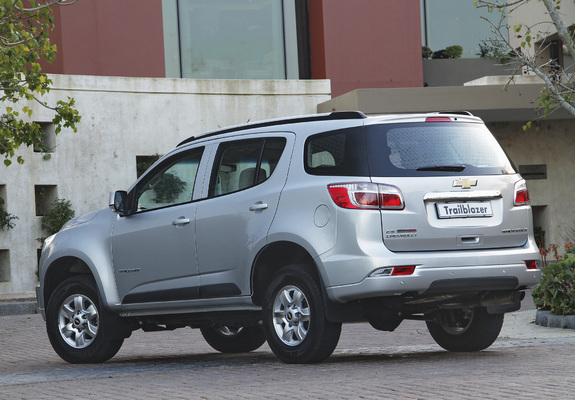

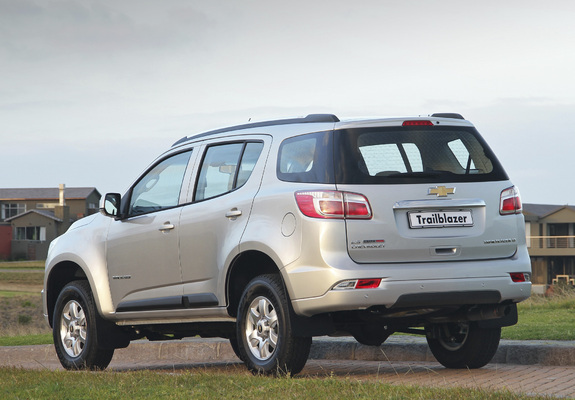

Chevrolet TrailBlazer 2012–2016

2 generation

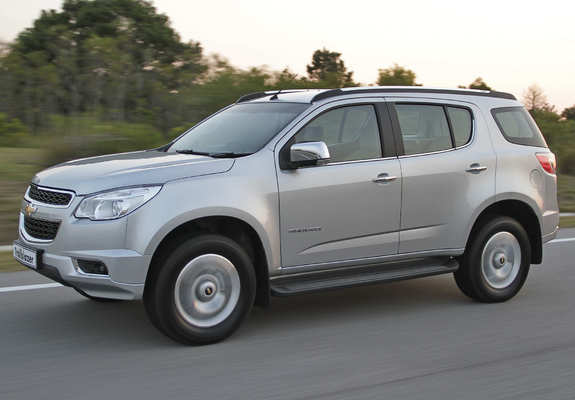

No photos yet2.8 D AT AWD (180 hp)
General information
Number of doors5
Car classJ
Steering wheel positionLeft
CountryUSA
At a glance
Engine2776 cm3 Diesel
Power180 hp
GearboxAutomatic
OriginUnited States
Trim
2.8 D AT AWD (180 hp)2.8 D MT AWD (180 hp)3.6 AT AWD (239 PS)

Specifications

Engine
Stroke cycle100.0 mm
Max power (kW)132 kW
Compression ratio16
Turnover of maximum torque1600 RPM
Engine power179 PS
Engine power180 hp
Capacity2776 cm3
Max power at RPM3800 RPM
Number of cylinders4
Valves per cylinder4
Maximum torque470 N*m
Cylinder bore94.0 mm
Injection typeCommon rail (diesel)
Engine typeDiesel
Timing beltDOHC
Engine placementFront, longitudinal
Cylinder layoutinline
Presence of intercoolerPresent
Boost typeTurbocharged
Bodywork
Front track1570 mm
Rear track1570 mm
Front track width1570 mm
Back track width1570 mm
Max trunk capacity1830 l
Height1848 mm
Width1902 mm
Curb weight2091 kg
Wheel size245/70 R16, 265/60 R18
Clearance255 mm
Ground clearance267 mm
Full weight2750 kg
Wheelbase2845 mm
Length4878 mm
Trailer load (with brakes)5750 kg
Payload659 kg
Number of seater7
Min trunk capacity878 l
Body typeCrossover
Pitch Circle DiameterDIA100.1 6x139.7 mm
Gearbox and handling
Turning circle12.8 m
Number of gear6
Drive wheelsAll wheel drive (AWD)
Gearbox typeAutomatic
Operating characteristics
City driving fuel consumption per 100 km12.0 l
Acceleration (0-100 km/h)12.5 s
Max speed180 km/h
Fuel tank capacity77 l
Highway driving fuel consumption per 100 km8.0 l
Mixed driving fuel consumption per 100 km9.8 l
Fueldiesel
Cruising rangefrom 640 to 960 km
Suspension and brakes
Back suspensionDependent, spring
Rear brakesDisc
Front suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
