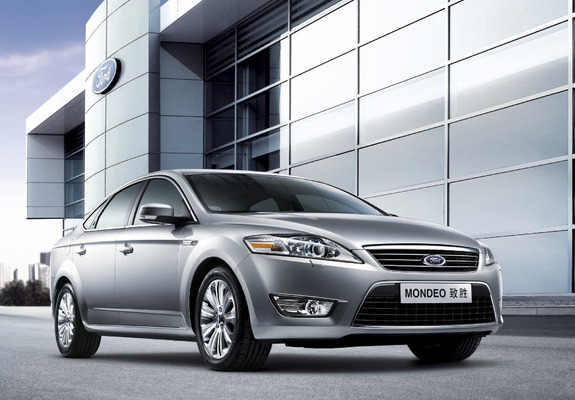

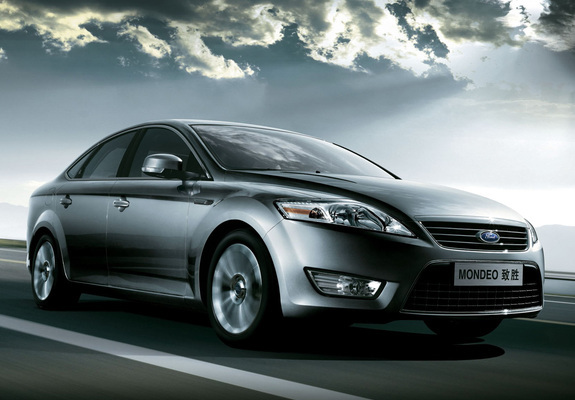

Ford Mondeo 2006–2010

4 generation
No photos yet2.5T MT (220 PS)
General information
Number of doors5
Car classD
Steering wheel positionLeft
CountryUSA
At a glance
Engine2521 cm3 Gasoline
Power217 hp
GearboxManual
OriginUnited States
Series
LiftbackSedanwagon
Trim
1.6 MT (110 hp)1.6 MT (125 hp)1.8d AT (125 hp)1.8d MT (125 hp)1.8 MT (101 hp)1.8 TDCi 5MT (125 hp)1.8 TDCi 6MT (125 hp)1.8 TDCi MT (100 hp)2.0d AT (130 hp)2.0d AT (140 hp)2.0d MT (130 hp)2.0d MT (140 hp)2.0 Flexifuel MT (145 hp)2.0 MT (145 hp)2.0 SCTi EcoBoost Powershift (203 hp)2.0 TDCi DPF AT (130 hp)2.0 TDCi DPF AT (140 hp)2.0 TDCi DPF MT (115 hp)2.0 TDCi DPF MT (130 hp)2.0 TDCi DPF MT (140 hp)2.0 TDCi MT (115 hp)2.0 TDCi MT (140 hp)2.0 TDCi MT (163 hp)2.0 TDCi Powershift (140 hp)2.0 TDCi Powershift (163 hp)2.2d MT (175 PS)2.2 TDCi DPF MT (175 hp)2.3 AT (160 hp)2.3 AT (161 hp)2.5T MT (220 PS)

Specifications

Engine
Turnover of maximum torque1500 RPM
Max power (kW)162 kW
Engine power217 hp
Engine power220 PS
Capacity2521 cm3
Maximum torque320 N*m
Valves per cylinder4
Number of cylinders5
Max power at RPM5000 RPM
Cylinder bore83.0 mm
Compression ratio9
Stroke cycle93.2 mm
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine typeGasoline
Engine codeHUBA
Cylinder layoutinline
Presence of intercoolerPresent
Boost typeTurbocharged
Bodywork
Clearance130 mm
Max trunk capacity1448 l
Curb weight1495 kg
Height1500 mm
Ground clearance155 mm
Front track1589 mm
Front track width1589 mm
Rear track1605 mm
Back track width1605 mm
Width1886 mm
Wheel size205/55 R16, 235/45 R17
Full weight2185 kg
Wheelbase2850 mm
Trailer load (with brakes)3985 kg
Length4778 mm
Number of seater5
Min trunk capacity528 l
Pitch Circle DiameterDIA63.3 5x108 mm
Body typeLiftback
Gearbox and handling
Turning circle11.8 m
Number of gear6
Drive wheelsFront wheel drive
Gearbox typeManual
Operating characteristics
City driving fuel consumption per 100 km13.6 l
Max speed245 km/h
Highway driving fuel consumption per 100 km6.8 l
Fuel tank capacity70 l
Acceleration (0-100 km/h)7.5 s
Mixed driving fuel consumption per 100 km9.3 l
Fuel95
Emission standardsEURO IV
Cruising rangefrom 510 to 1 030 km
Suspension and brakes
Front brakesDisc
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
