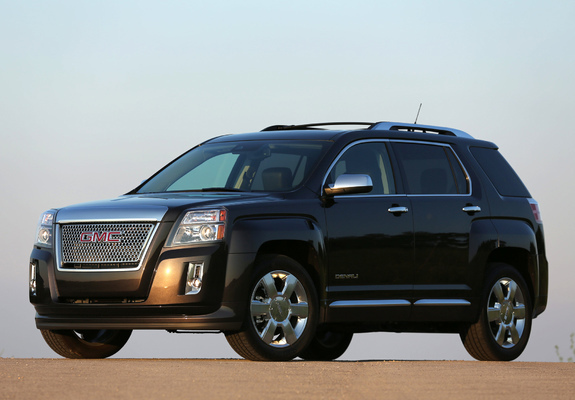

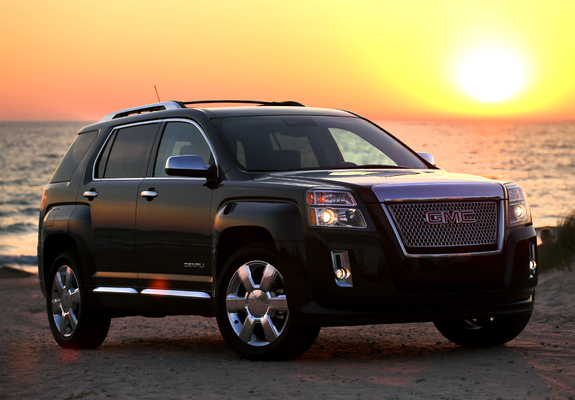

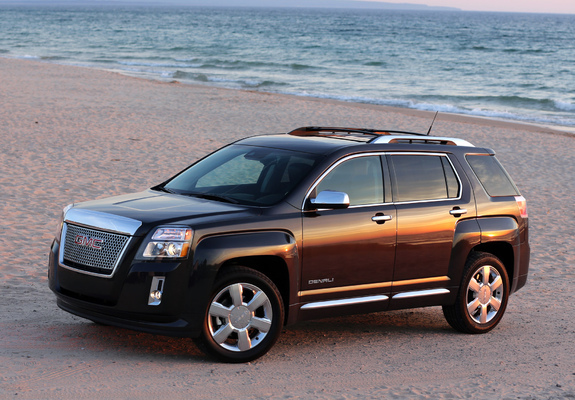

GMC Terrain 2009–2015

1 generation

No photos yet2.4 AT 4WD (182 PS)

General information

Number of doors5

Car classD

Steering wheel positionLeft

CountryUSA

At a glance

Engine2384 cm3 Gasoline

Power180 hp

GearboxAutomatic

Origin

United States

Trim

2.4 AT 4WD (182 PS)3.0 AT 4WD (264 PS)3.6 AT 4WD (301 hp)

Specifications

Engine

Compression ratio10.4

Max power (kW)134 kW

Maximum torque172 N*m

Engine power180 hp

Engine power182 PS

Capacity2384 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4900 RPM

Max power at RPM6700 RPM

Cylinder bore88 mm

Stroke cycle98 mm

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Engine codeLAF

Engine modelLAF

Boost typenone

Bodywork

Back track width1578 mm

Front track width1598 mm

Height1684 mm

Clearance175 mm

Width1849 mm

Wheel size225/65 R17, 235/55 R18

Wheelbase2858 mm

Length4707 mm

Number of seater5

Body typeCrossover

Pitch Circle DiameterDIA66.9 5x120 mm

Gearbox and handling

Number of gear6

Drive wheelsAll wheel drive (AWD)

Gearbox typeAutomatic

Operating characteristics

Mixed driving fuel consumption per 100 km10.0 l

City driving fuel consumption per 100 km11.8 l

Highway driving fuel consumption per 100 km8.1 l

Fuel92

Acceleration (0-100 km/h)9.5 s

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Front brakesventilated disc
