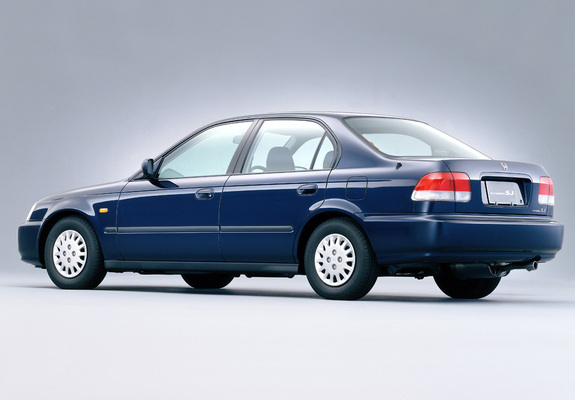

Honda Integra SJ 1996–2001

1 generation

General information

Number of doors4

Car classC

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine1493 cm3 Gasoline

Power103 hp

GearboxAutomatic

Origin

Japan

Trim

1.5 AT (105 PS)1.5 CVT (105 PS)1.5 CVT (130 hp)1.5 MT (105 PS)1.5 MT (130 hp)

Specifications

Engine

Engine power103 hp

Engine power105 PS

Maximum torque133 N*m

Capacity1493 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque4500 RPM

Max power at RPM6400 RPM

Cylinder bore75.0 mm

Max power (kW)77 kW

Stroke cycle85.0 mm

Compression ratio9

Engine modelD15B7

Engine codeD15B7

Injection typedistributed injection (multipoint)

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Height1390 mm

Front track width1475 mm

Back track width1475 mm

Clearance150 mm

Width1695 mm

Wheel size175/70 R13

Wheelbase2620 mm

Length4450 mm

Number of seater5

Disc size5x13 ET45

Pitch Circle DiameterDIA56.1 4x100 mm

Body typeSedan

Gearbox and handling

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)11.6 s

Max speed183 km/h

Fuel tank capacity45 l

Mixed driving fuel consumption per 100 km6.5 l

Fuel95

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
