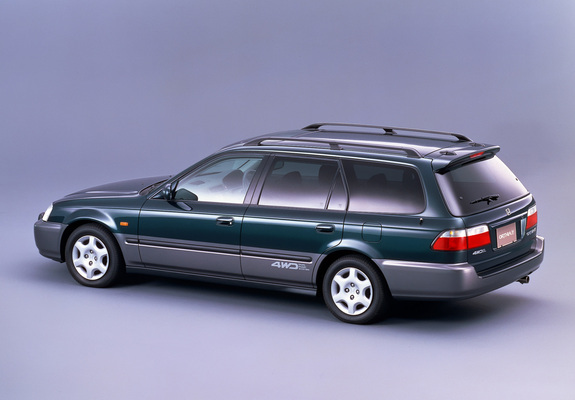

Honda Orthia 1996–1999

1 generation

General information

Number of doors5

Car classC

CountryJapan

Steering wheel positionRight

At a glance

Engine1834 cm3 Gasoline

Power138 hp

GearboxAutomatic

Origin

Japan

Trim

1.8 AT (140 PS)1.8 MT (140 PS)2.0 AT (145 PS)2.0 AT (150 PS)2.0 AT 4WD (145 hp)2.0 AT AWD (145 PS)2.0 AT AWD (150 PS)2.0 MT (150 PS)2.0 MT AWD (150 PS)

Specifications

Engine

Max power (kW)103 kW

Engine power138 hp

Engine power140 PS

Maximum torque170 N*m

Capacity1834 cm3

Number of cylinders4

Valves per cylinder4

Turnover of maximum torque5200 RPM

Max power at RPM6300 RPM

Cylinder bore81.0 mm

Stroke cycle89.0 mm

Compression ratio9.2

Engine modelb18b

Engine codeB18B

Injection typedistributed injection (multipoint)

Timing beltDOHC

Engine placementFront, transverse

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Bodywork

Curb weight1200 kg

Back track width1455 mm

Front track1475 mm

Rear track1475 mm

Front track width1475 mm

Height1490 mm

Ground clearance160 mm

Clearance160 mm

Width1695 mm

Wheel size185/65 R14

Wheelbase2620 mm

Length4635 mm

Number of seater5

Pitch Circle DiameterDIA56.1 4x100 mm

Body typeWagon

Gearbox and handling

Turning circle10.8 m

Number of gear4

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)12.0 s

Fuel tank capacity53 l

Mixed driving fuel consumption per 100 km7.8 l

Fuel92

Suspension and brakes

Rear brakesdrum

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
