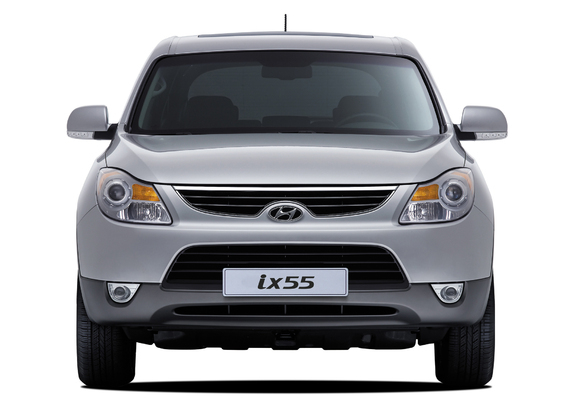

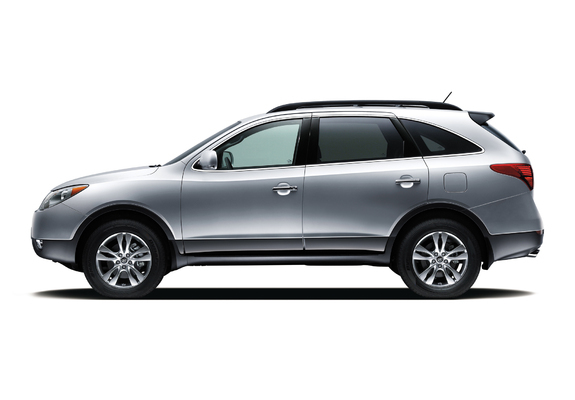

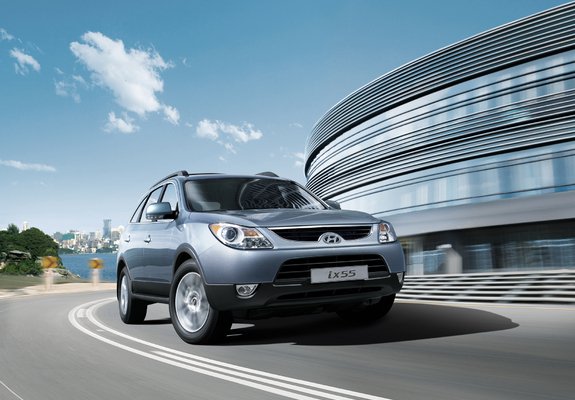

Hyundai ix55 2008–2013

1 generation

No photos yet3.0 CRDI Shiftronic (239 hp)

At a glance

Engine2959 cm3 Diesel

Power239 hp

GearboxAutomatic

OriginN/A

Trim

3.0 AT (239 hp)3.0 AT (250 hp)3.0 AT AWD (239 hp)3.0 CRDI Shiftronic (239 hp)3.0 CRDi Shiftronic (250 hp)3.0 CRDi Shiftronic 4WD (250 hp)3.8 Shiftronic 4WD (260 hp)

Specifications

Engine

Max power (kW)178 kW

Engine power239 hp

Engine power242 PS

Capacity2959 cm3

Valves per cylinder4

Maximum torque451 N*m

Number of cylinders6

Stroke cycle87 mm

Cylinder bore96 mm

Injection typeCommon Rail

Engine typeDiesel

Turnover of maximum torquefrom 1 750 to 3 500 RPM

Presence of intercoolerPresent

Max power at RPMto 3 800 RPM

Boost typeTurbine + compressor

Cylinder layoutV-type

Bodywork

Front track1668 mm

Rear track1671 mm

Max trunk capacity1746 l

Height1795 mm

Width1945 mm

Ground clearance205 mm

Curb weight2095 kg

Full weight2780 kg

Wheelbase2805 mm

Length4840 mm

Min trunk capacity598 l

Number of seater7

Body typeCrossover

Gearbox and handling

Turning circle11.2 m

Number of gear6

Gearbox typeAutomatic

Drive wheelsFront wheel drive

Operating characteristics

Acceleration (0-100 km/h)10 s

City driving fuel consumption per 100 km12.4 l

Max speed190 km/h

Highway driving fuel consumption per 100 km7.6 l

Fuel tank capacity78 l

Mixed driving fuel consumption per 100 km9.4 l

Fueldiesel

Emission standardsEURO IV

Cruising rangefrom 630 to 1 030 km

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, McPherson Struts

Back suspensionIndependent, Multi wishbone

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
