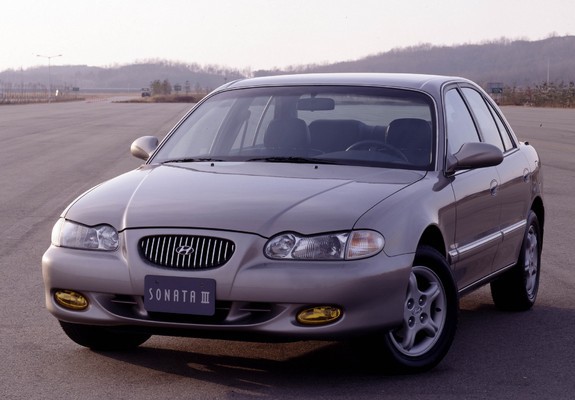

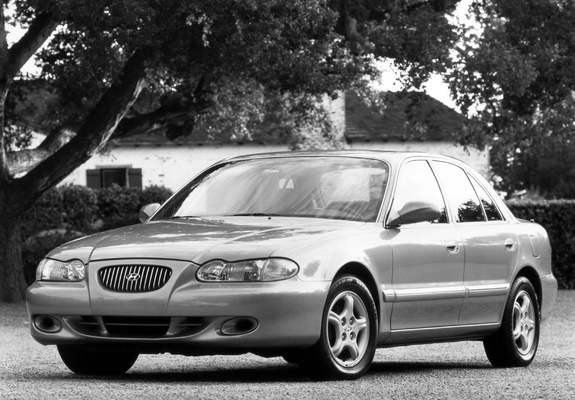

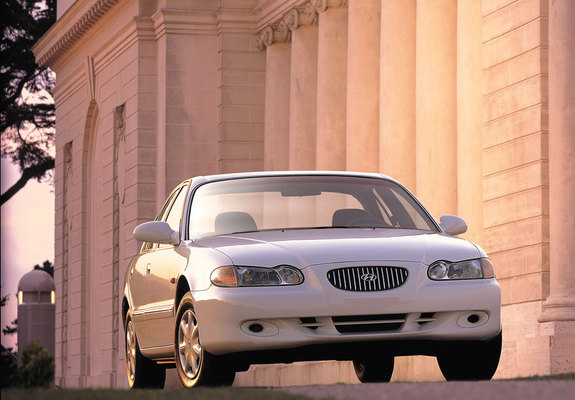

Hyundai Sonata 1996–1998

3 generation [restyling]

No photos yet1.8 MT (110 PS)

General information

Number of doors4

Car classD

Steering wheel positionLeft

CountrySouth Korea

At a glance

Engine1796 cm3 Gasoline

Power109 hp

GearboxManual

Origin

South Korea

Trim

1.8 AT (110 PS)1.8 AT (135 PS)1.8 MT (110 PS)1.8 MT (135 PS)2.0 AT (125 PS)2.0 AT (139 PS)2.0 AT (95 PS)2.0 MT (106 PS)2.0 MT (115 hp)2.0 MT (125 PS)2.0 MT (139 PS)2.0 MT (146 hp)2.0 MT (95 PS)3.0 AT (146 hp)

Specifications

Engine

Engine power109 hp

Engine power110 PS

Maximum torque162 N*m

Capacity1796 cm3

Valves per cylinder2

Number of cylinders4

Turnover of maximum torque4500 RPM

Engine model4G62

Max power at RPM5500 RPM

Cylinder bore80.6 mm

Max power (kW)81 kW

Compression ratio8.8

Stroke cycle88.0 mm

Injection typedistributed injection (multipoint)

Engine placementFront, transverse

Engine codeG4CM

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Curb weight1295 kg

Height1405 mm

Clearance150 mm

Back track width1500 mm

Front track width1515 mm

Width1770 mm

Wheel size195/70 R14

Wheelbase2700 mm

Min trunk capacity374 l

Length4700 mm

Number of seater5

Disc size5.5x14 ET46, 6.5x16 ET38, 6x15 ET40

Pitch Circle DiameterDIA67.1 4x114.3 mm

Body typeSedan

Gearbox and handling

Number of gear5

Drive wheelsFront wheel drive

Gearbox typeManual

Operating characteristics

Mixed driving fuel consumption per 100 km13.2 l

Fuel tank capacity65 l

Fuel92

Suspension and brakes

Rear brakesDisc

Front suspensionIndependent, spring

Back suspensionIndependent, spring

Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
