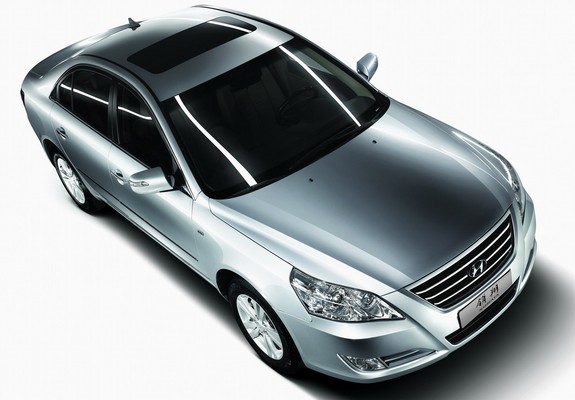

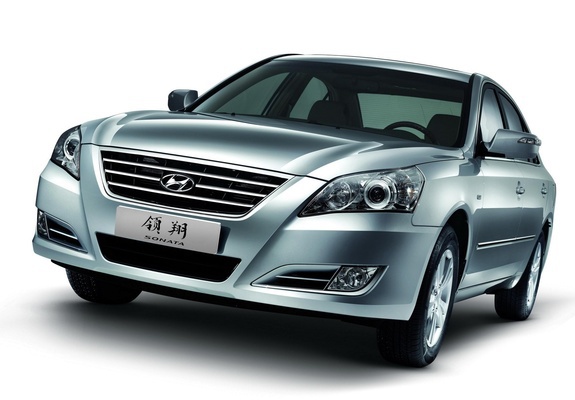

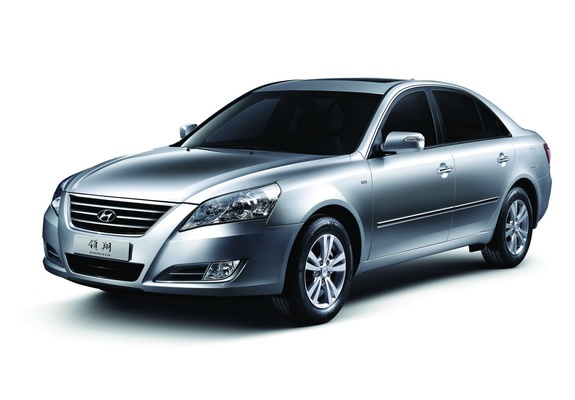

Hyundai Sonata 2008–2010

5 generation (NF) [restyling]
No photos yet2.0 MT (152 PS)
General information
Number of doors4
Car classD
Steering wheel positionLeft
CountrySouth Korea
At a glance
Engine1998 cm3 Gasoline
Power150 hp
GearboxManual
OriginSouth Korea
Trim
2.0 AT (150 PS)2.0 AT (152 PS)2.0 AT (162 hp)2.0 AT (164 hp)2.0 CRDi AT (148 hp)2.0 CRDi MT (148 hp)2.0 MT (150 PS)2.0 MT (152 PS)2.0 MT (162 hp)2.0 MT (164 hp)2.4 AT (174 PS)2.4 MT (174 PS)2.7 AT (172 hp)3.3 AT (247 hp)

Specifications

Engine
Compression ratio10.5
Max power (kW)112 kW
Engine power150 hp
Engine power152 PS
Maximum torque196 N*m
Capacity1998 cm3
Number of cylinders4
Valves per cylinder4
Turnover of maximum torque4800 RPM
Max power at RPM6500 RPM
Cylinder bore86.0 mm
Stroke cycle86.0 mm
Injection typedistributed injection (multipoint)
Timing beltDOHC
Engine placementFront, transverse
Engine codeG4KD
Engine modelG4KD
Engine typeGasoline
Cylinder layoutinline
Boost typenone
Bodywork
Height1485 mm
Rear track1550 mm
Back track width1550 mm
Front track1565 mm
Front track width1565 mm
Ground clearance160 mm
Clearance160 mm
Curb weight1621 kg
Width1832 mm
Full weight2030 kg
Wheel size225/50 R17, 215/60 R16
Wheelbase2730 mm
Length4800 mm
Number of seater5
Max trunk capacity523 l
Min trunk capacity523 l
Payload555 kg
Pitch Circle DiameterDIA67.1 5x114.3 mm
Body typeSedan
Gearbox and handling
Turning circle12 m
Number of gear5
Drive wheelsFront wheel drive
Gearbox typeManual
Operating characteristics
City driving fuel consumption per 100 km10.1 l
Acceleration (0-100 km/h)10.5 s
Max speed202 km/h
Highway driving fuel consumption per 100 km6.3 l
Fuel tank capacity70 l
Mixed driving fuel consumption per 100 km7.7 l
Fuel95
Emission standardsEURO IV
Cruising rangefrom 690 to 1 110 km
Suspension and brakes
Rear brakesDisc
Front suspensionIndependent, spring
Back suspensionIndependent, spring
Front brakesventilated disc

Grades & features

Select a grade to see its included features. A check means standard equipment; a cross means optional or not specified.
