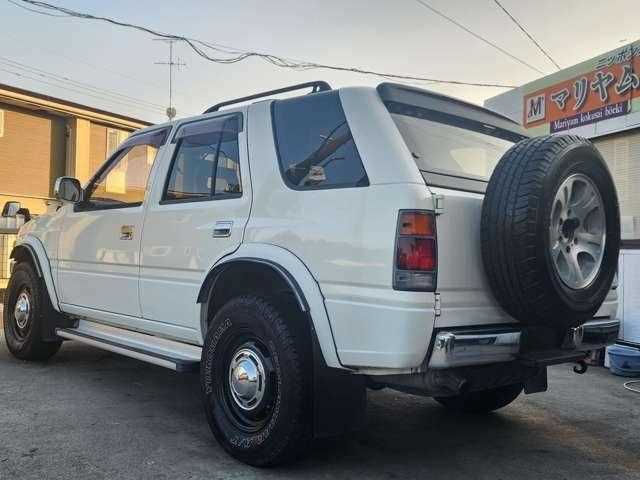

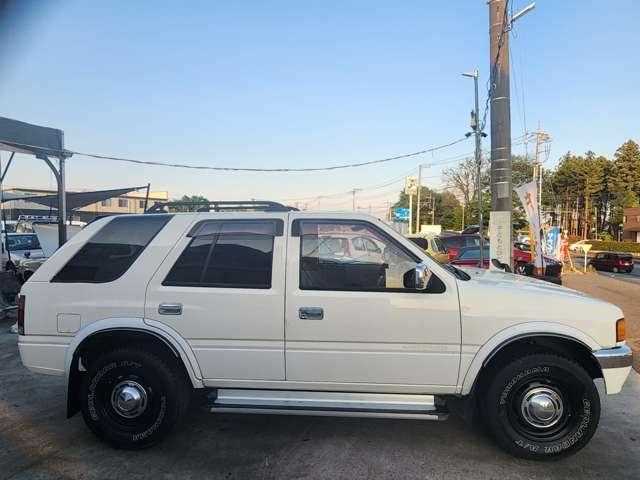

Isuzu Wizard 1990–1998

1 generation

No photos yet2.3 MT 4WD (110 PS)

General information

Number of doors5

Car classJ

CountryJapan

Steering wheel positionLeft/Right

At a glance

Engine2255 cm3 Gasoline

Power109 hp

GearboxManual

Origin

Japan

Trim

2.3 AT 4WD (110 PS)2.3 MT 4WD (110 PS)2.6 AT 4WD (120 PS)2.6 MT 4WD (120 PS)2.8 AT 4WD (110 PS)2.8 MT 4WD (110 PS)3.0 AT 4WD (145 PS)3.0 MT 4WD (145 PS)3.2 AT 4WD (208 PS)3.2 MT 4WD (208 PS)

Specifications

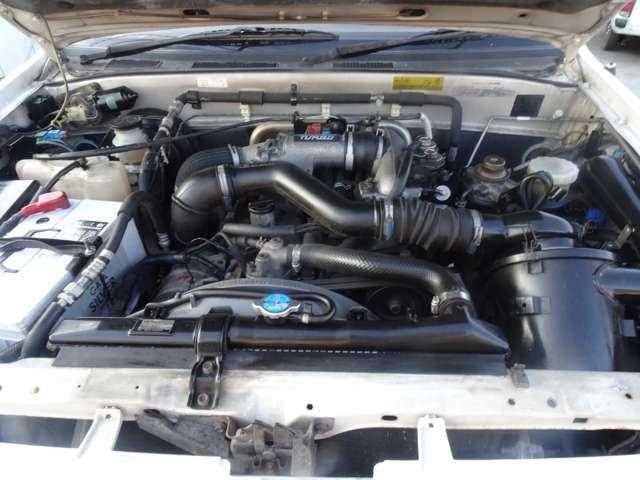

Engine

Engine power109 hp

Engine power110 PS

Maximum torque123 N*m

Valves per cylinder2

Capacity2255 cm3

Turnover of maximum torque2600 RPM

Number of cylinders4

Engine model4zd1

Engine code4ZD1

Max power at RPM5500 RPM

Max power (kW)81 kW

Compression ratio8.3

Cylinder bore89.3 mm

Stroke cycle90 mm

Injection typecarburetor

Engine placementFront, longitudinal

Engine typeGasoline

Cylinder layoutinline

Boost typenone

Timing beltSOHC

Bodywork

Front track width1440 mm

Back track width1445 mm

Height1660 mm

Width1690 mm

Clearance205 mm

Wheelbase2760 mm

Length4480 mm

Number of seater5

Body typeCrossover

Gearbox and handling

Number of gear5

Drive wheelsAll wheel drive (AWD)

Gearbox typeManual

Operating characteristics

City driving fuel consumption per 100 km11.6 l

Max speed160 km/h

Acceleration (0-100 km/h)21.4 s

Highway driving fuel consumption per 100 km7.8 l

Mixed driving fuel consumption per 100 km9.2 l

Suspension and brakes

Front brakesDisc

Rear brakesDisc

Front suspensionIndependent, spring
