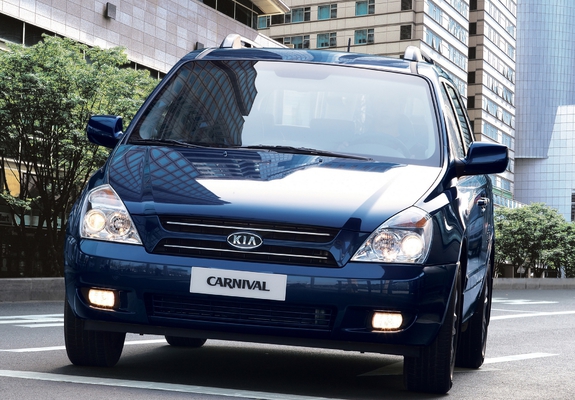

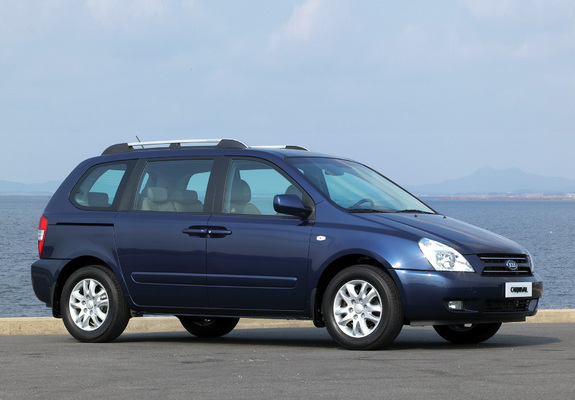

Kia Carnival 2006–2014

2nd Generation (VQ)
General information
Number of doors5
Steering wheel positionLeft
Car classM
CountrySouth Korea
At a glance
Engine2199 cm3 Diesel
Power194 hp
GearboxAutomatic
OriginSouth Korea
Series
Grand minivan 5-doorsMinivan 5-doorsMinivan Grand
Trim
2.2 AT (197 PS)2.2 MT (197 PS)2.7 AT (161 hp)2.7 AT (189 PS)2.7 MT (189 PS)2.9 AT (170 PS)2.9 AT (192 PS)2.9 CRDi AT (182 hp)2.9d AT (160 hp)2.9d MT (160 hp)2.9 MT (170 PS)2.9 MT (185 PS)3.5 AT (275 PS)3.8 AT (250 hp)Grand 2.9d AT (185 PS)Grand 3.8 AT (254 PS)

Specifications

Engine
Max power (kW)145 kW
Compression ratio16
Engine power194 hp
Engine power197 PS
Capacity2199 cm3
Turnover of maximum torque2500 RPM
Max power at RPM3800 RPM
Number of cylinders4
Valves per cylinder4
Maximum torque421 N*m
Cylinder bore85.4 mm
Stroke cycle96.0 mm
Injection typeCommon rail (diesel)
Engine codeD4HB
Engine typeDiesel
Timing beltDOHC
Engine placementFront, transverse
Cylinder layoutinline
Boost typeTurbocharged
Bodywork
Clearance167 mm
Front track width1685 mm
Back track width1685 mm
Height1815 mm
Width1985 mm
Wheel size225/70 R16, 235/60 R17
Full weight2790 kg
Wheelbase3020 mm
Max trunk capacity3440 l
Min trunk capacity364 l
Length5130 mm
Number of seater7
Pitch Circle DiameterDIA92.5 6x139.7 mm
Body typeMinivan
Gearbox and handling
Number of gear6
Gearbox typeAutomatic
Drive wheelsFront wheel drive
Operating characteristics
City driving fuel consumption per 100 km10.0 l
Acceleration (0-100 km/h)12.3 s
Max speed190 km/h
Highway driving fuel consumption per 100 km6.2 l
Mixed driving fuel consumption per 100 km7.5 l
Fuel tank capacity80 l
Fueldiesel
Suspension and brakes
Back suspensionDependent, spring
Rear brakesdrum
Front suspensionIndependent, spring
Front brakesventilated disc
